Product Features
Combination of highly efficient white (5000k) and PC-yellow LEDs.
Yellow LEDs optimised for use in snow / fog / dust conditions.

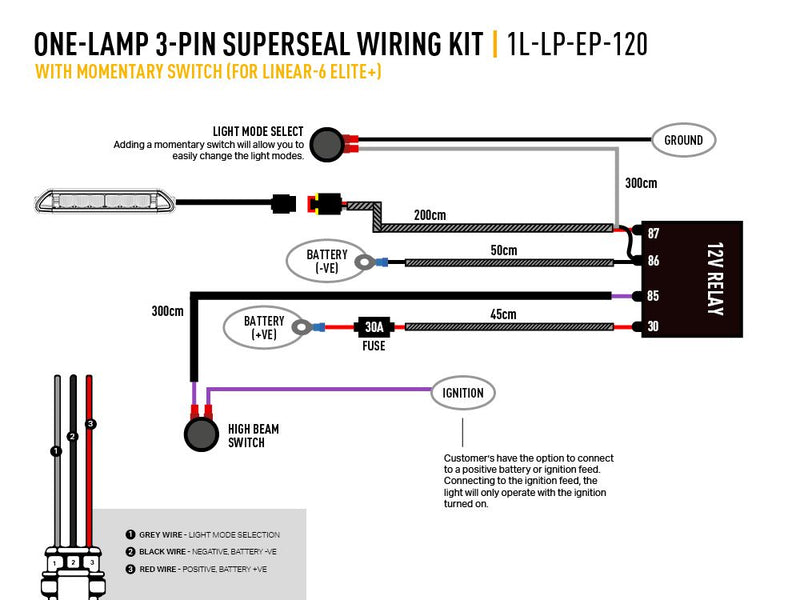

Compatible One-Lamp / Two-Lamp Wiring Kits available.
Momentary switch facilitates switching lighting modes.
Memory function recalls preferred lighting mode without needing to re-select each journey.

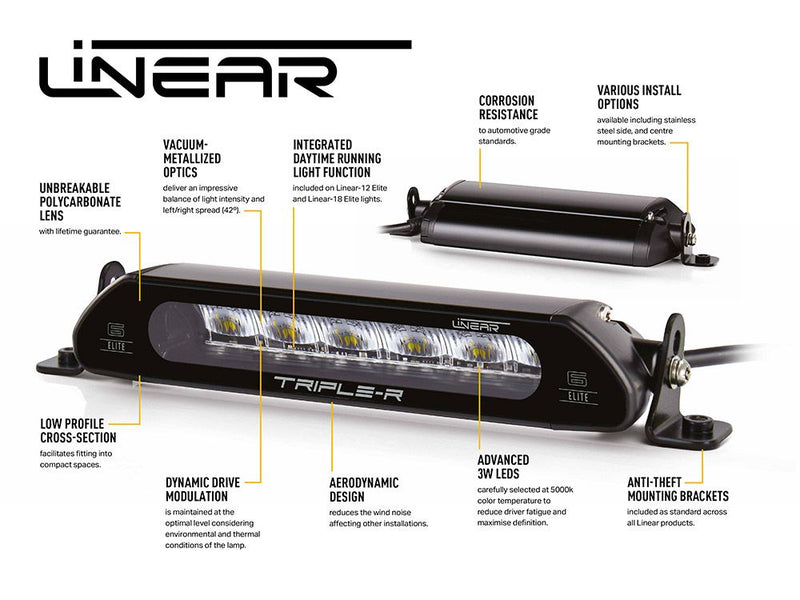

Sleek, low profile design facilitates installation
Flexible mounting options – anti-theft mounting brackets included
CAE optimised heatsink offers improved thermal dynamics
Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
Electronic thermal management system optimises light output to preserve longevity of the LEDs .
‘Unbreakable’ and hardcoated polycarbonate lens
IP68 watertight
5-year warranty
Designed & manufactured in the UK
Technical Specifications

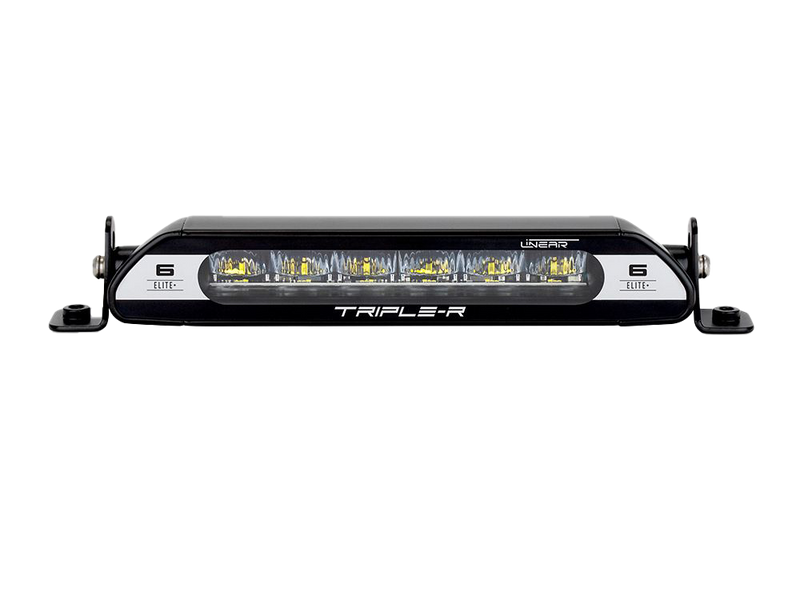

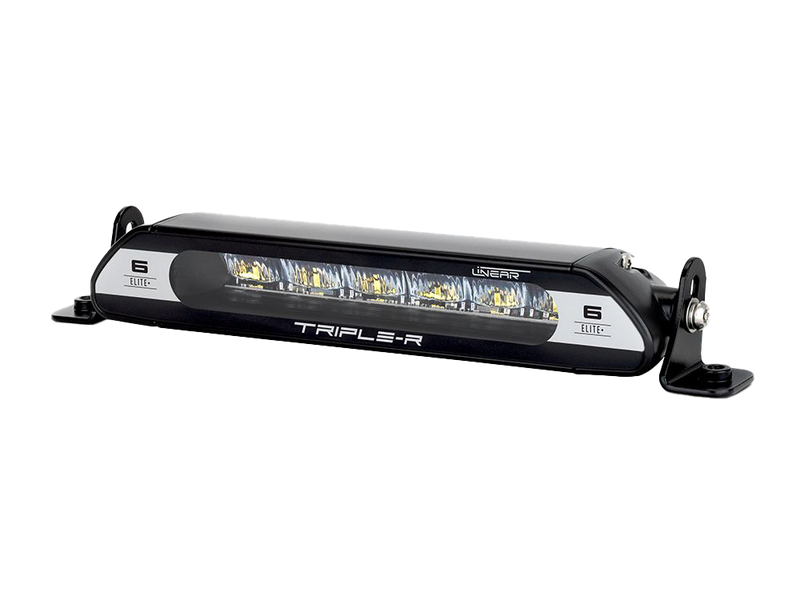

Based on: 1x Linear-6 Elite+ LED Lamp.
|

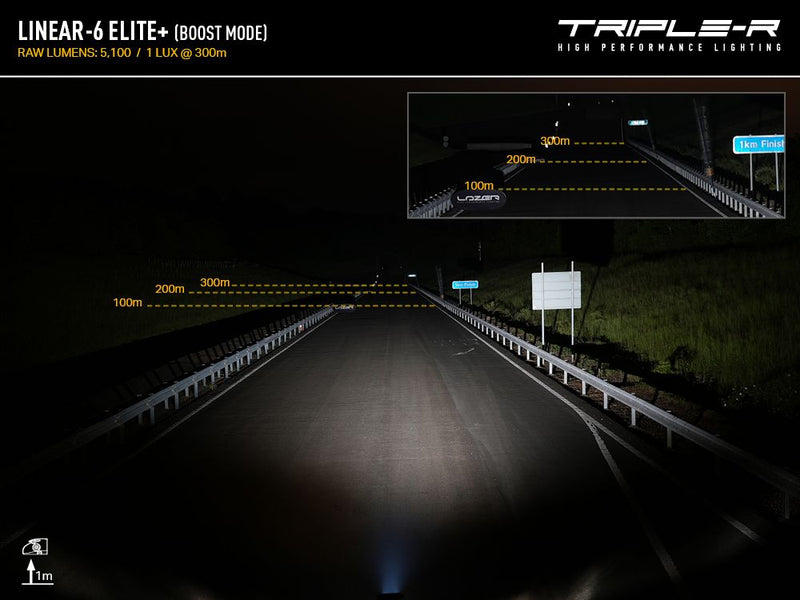

White LED's (E-Boost / Low Output Mode)
|

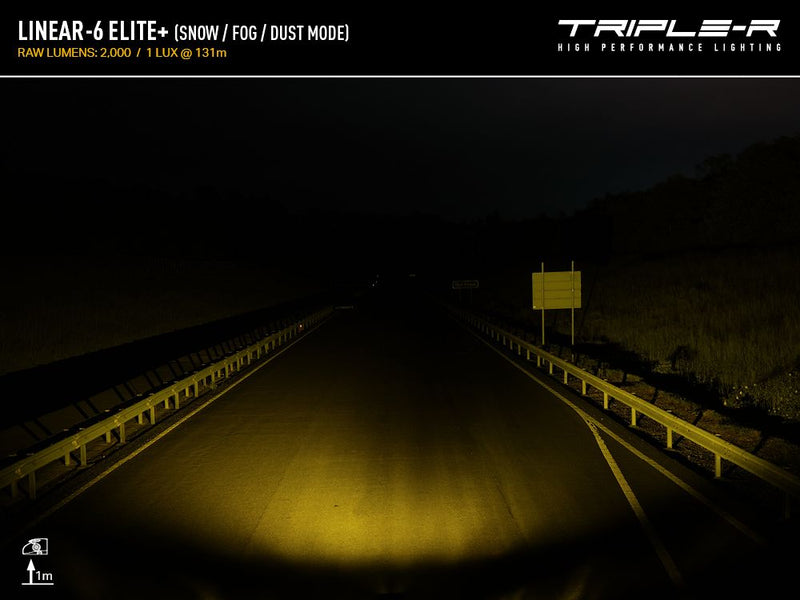

Yellow LED's (Fog / Dust / Snow Mode)
|

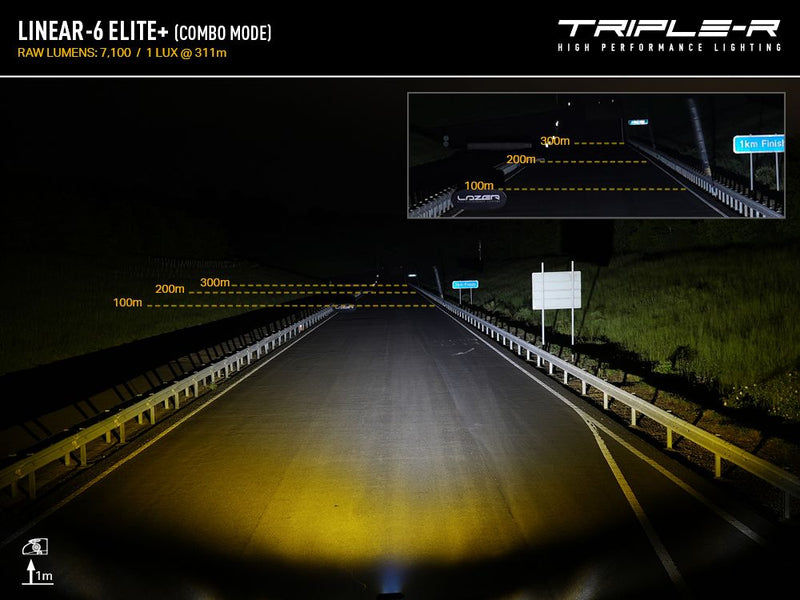

White & Yellow LED's (Combo Mode)
|
Voltage Range (DC) |
10-32V |
10-32V |
10-32V |
LED Life |
50,000 hours |
50,000 hours |
50,000 hours |
Weight |
1.1 lbs |
1.1 lbs |
1.1 lbs |
HIGH BEAM FUNCTION |
|
|
|
Total Luminous Flux |
5100 / 2500 Lm |
2,000 Lm |
7,100 Lm |
Total Driver 'FOV' Flux † |
3645 / 1822 Lm |
1,200 Lm |
4,774 Lm |
Colour Temperature |
5000K |
PC Yellow |
N/A |
Number of High Output LEDs |
12 |
6 |
12 White / 6 Yellow |
Power Consumption |
48 W / 24 W |
21 W |
69 W |
Current Draw |
3.6 A / 1.8 A |
1.5 A |
5.1 A |
Peak Current Draw |
4.9 A / 2.5 A |
2 A |
6.9 A |

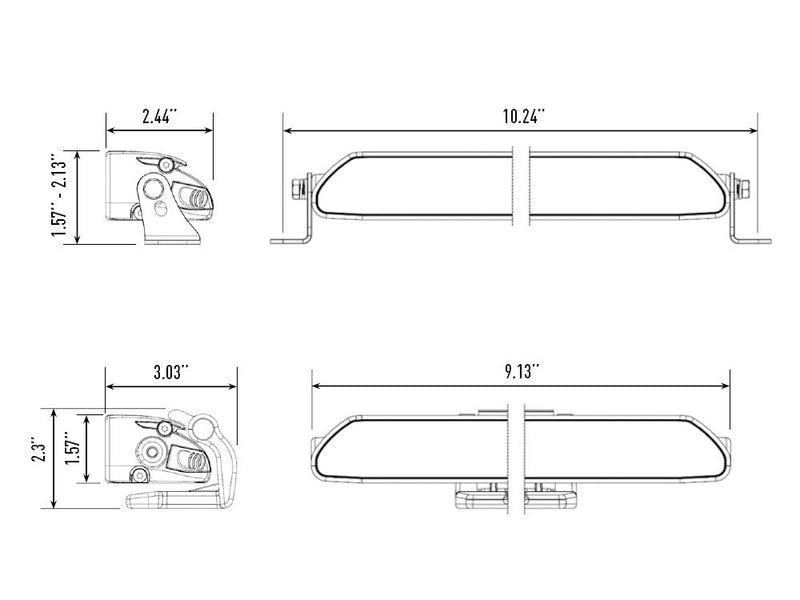

DIMENSIONS |
|
|
|
Width |
9.13" |
9.13" |
9.13" |
Depth |
2.44" |
2.44" |
2.44" |
Height |
1.57" |
1.57" |
1.57" |

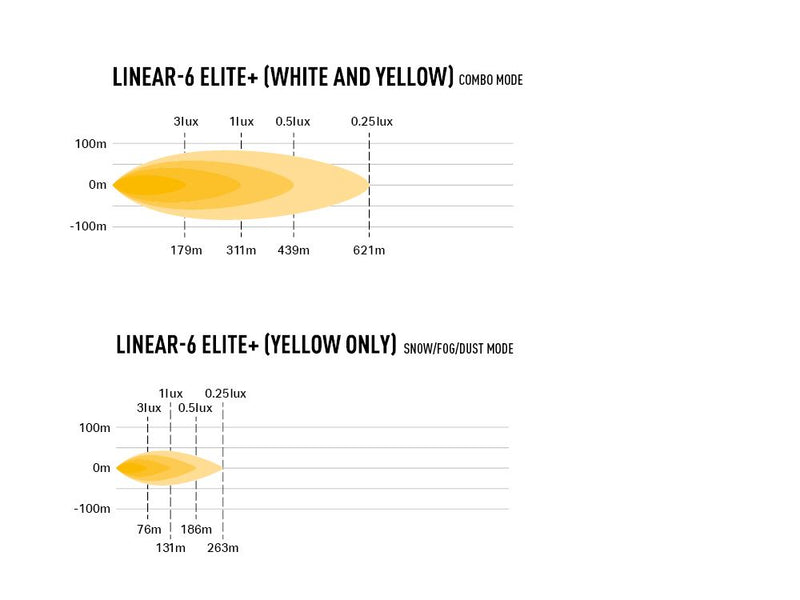

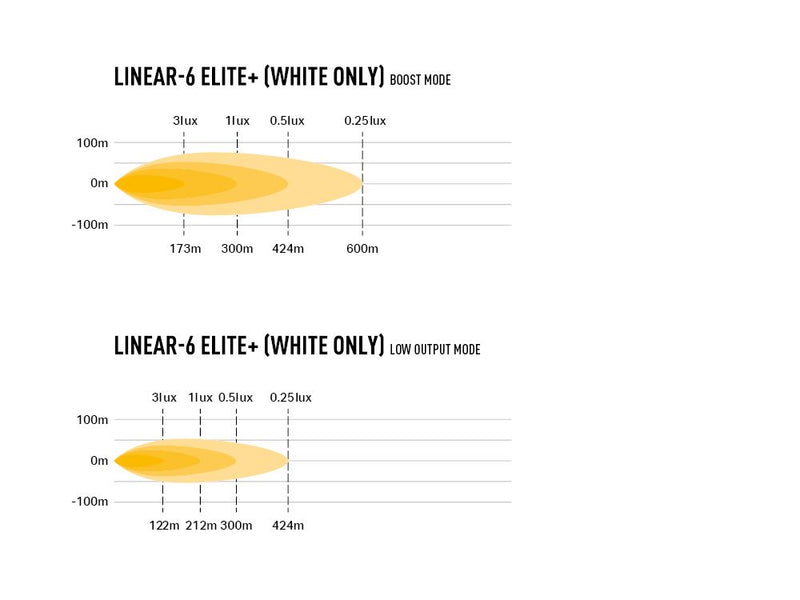

PHOTOMETRIC DATA |
|
|
|

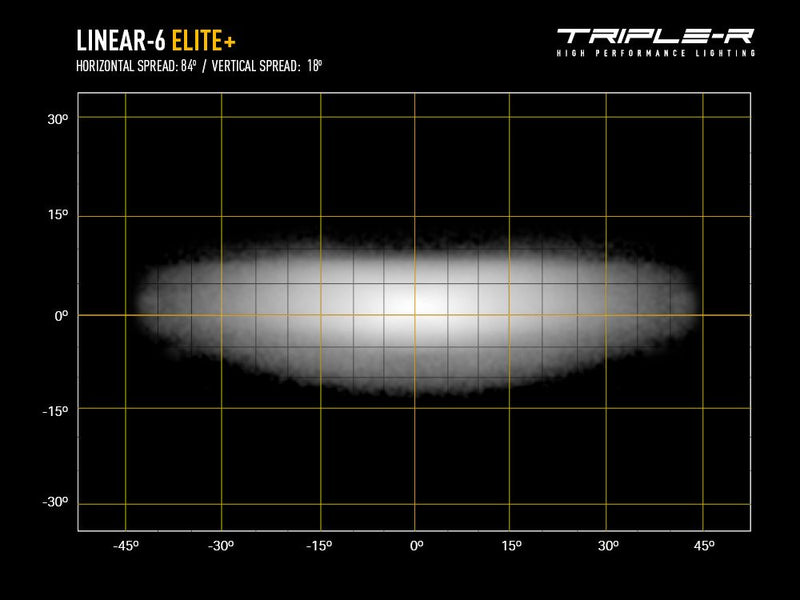

Horizontal Beam Angle |
84o
|
84o
|
84o
|
0.25 lx Line |
600m / 424m |
263m |
621m |
0.5 lx Line |
424m /300m |
186m |
439m |
1 lx Line |
300m / 212m |
131m |
311m |
3 lx Line |
173m / 122m |
76m |
179m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included

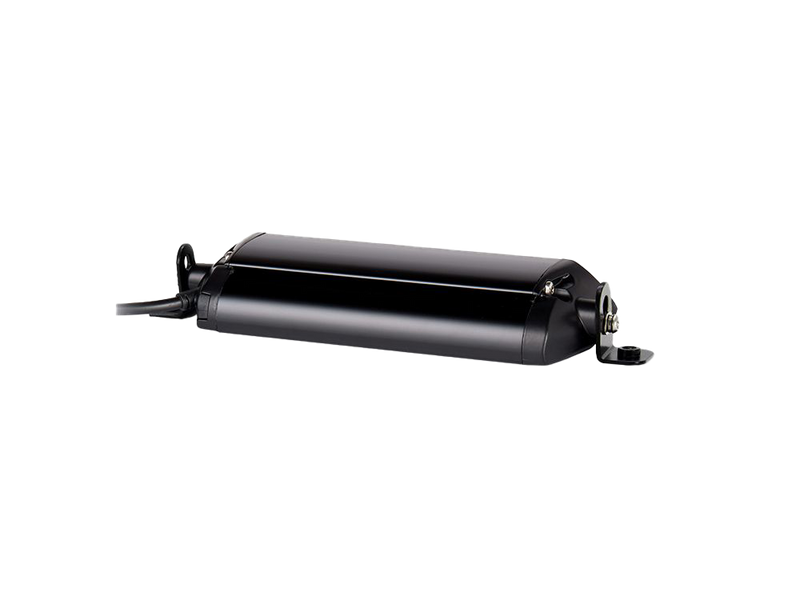

- x1 Linear-6 Elite+ LED Lamp
- x1 Anti-Theft Side Mount (1127k)
- x1 Installation Instructions
