Product Features
Highly efficient LED technologies (upgraded in 2020/21)
Ultra-reflective vacuum-metallized optics deliver perfectly tuned beam pattern
Contemporary lamp design
Includes versatile ‘Centre Mount’ mounting system plus side mounting brackets (1118K)
Aero design benefits low wind noise performance
CAE optimised heatsink offers improved thermal dynamics
Anodized pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
Electronic thermal management
Pressure equalization through GoreTex Breather technology
‘Unbreakable’ and hardcoated polycarbonate lens (Lifetime Guarantee)
IP68 watertight
5-year warranty
Wiring harness kit included (1L-HP-300)
Designed & manufactured in the UK
Technical Specifications
Based on 1x LR-28 Elite.
| Voltage Range |
10-32V |
| LED Life |
50,000 hrs |
| IP Rating |
IP68 |
| Weight |
8.6 lbs |
| HIGH BEAM FUNCTION |
|
| Total Luminous Flux |
28560 Lm |
| Total Driver 'FOV' Flux † |
18821 Lm |
| Color Temperature |
5000k |
| Number of High Output LEDs |
28 |
| Power Consumption |
326 Watts |
| Current Draw (at 14.4V) |
22.6 Amps |
| DIMENSIONS |
|
| Length |
51.4" |
| Depth |
4.06" |
| Height |
2.87" |

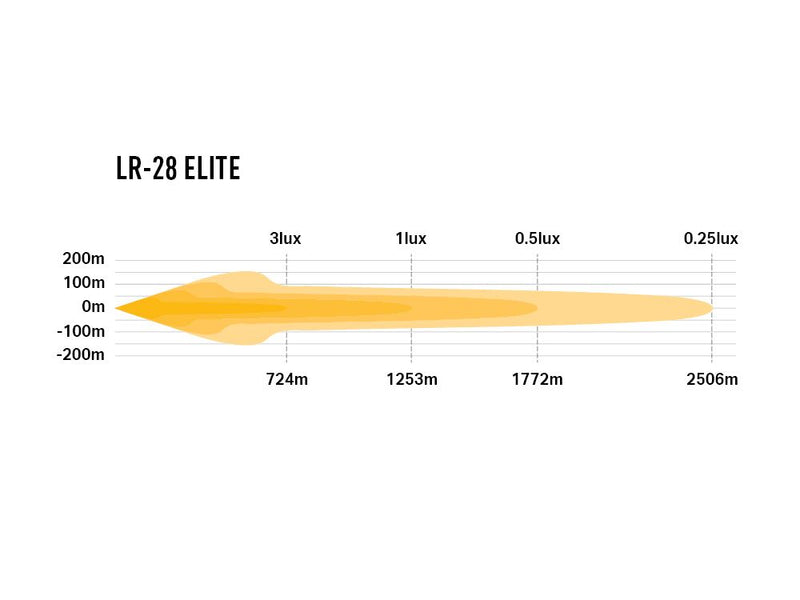

| PHOTOMETRIC DATA |
|
| Horiz Beam Angle |
30 Deg |
| 0.25 lx Line |
2506 metres |
| 0.5 lx Line |
1772 metres |
| 1 lx Line |
1253 metres |
| 3 lx Line |
724 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included
- x1 LR-28 Elite LED Light
- x1 Wiring Kit (1L-HP-300)
- x3 Centre Mount (1114K)
- x1 Side Mounting Kit (1118K)
- x1 Installation Instructions
