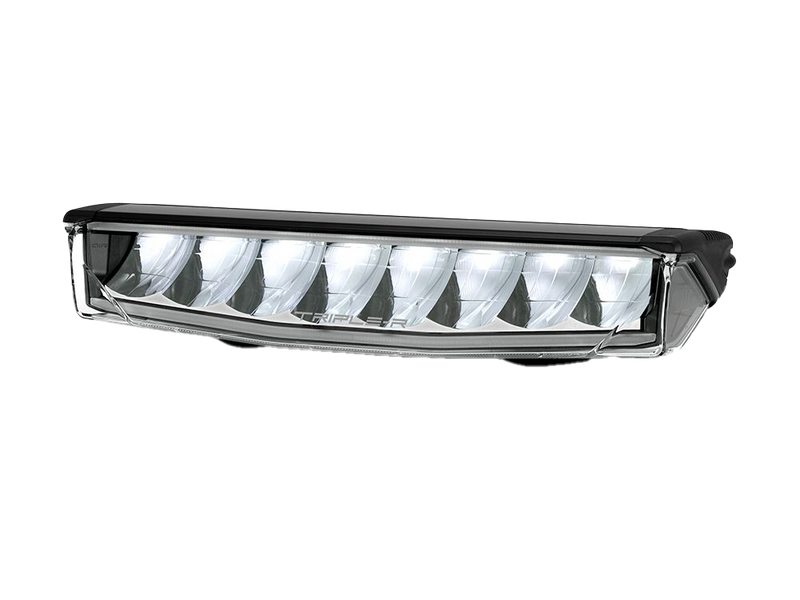

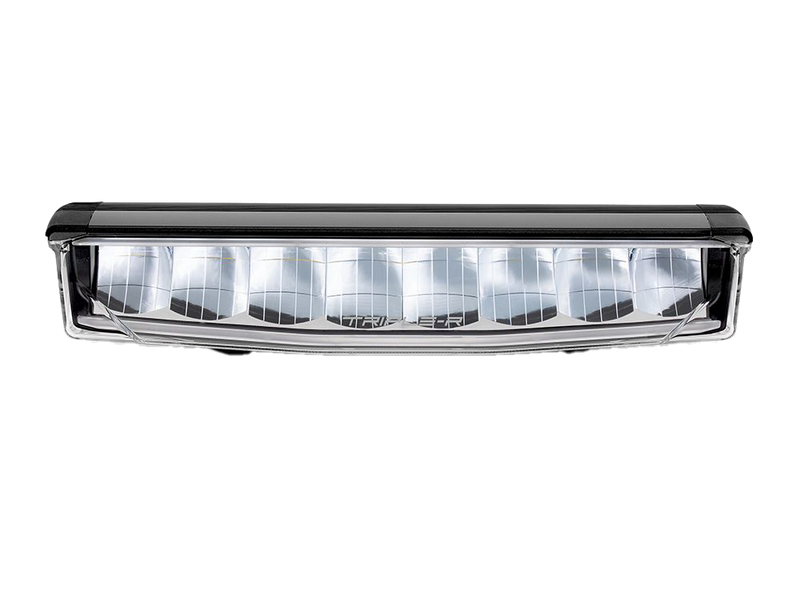

Triple R Air-90

$425.00

Product Features

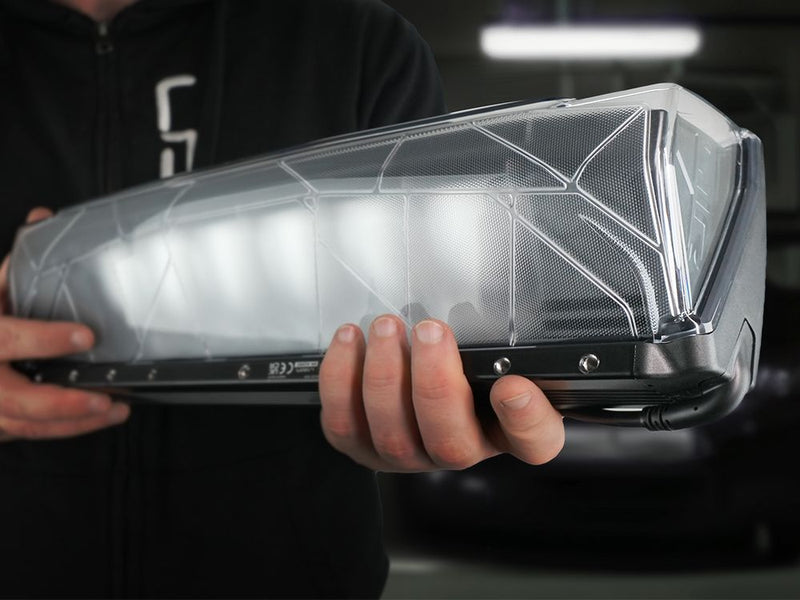

Patent-pending injection moulded monocoque lens with texture effect to the underside

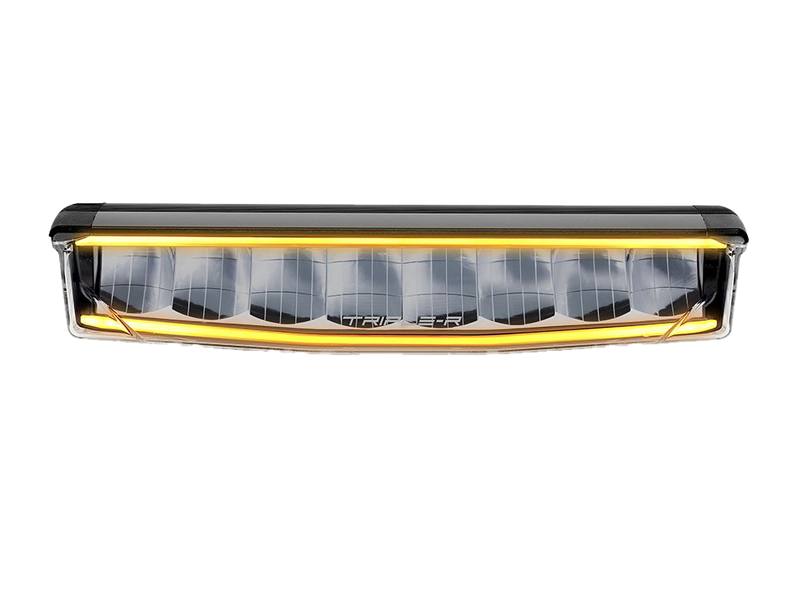

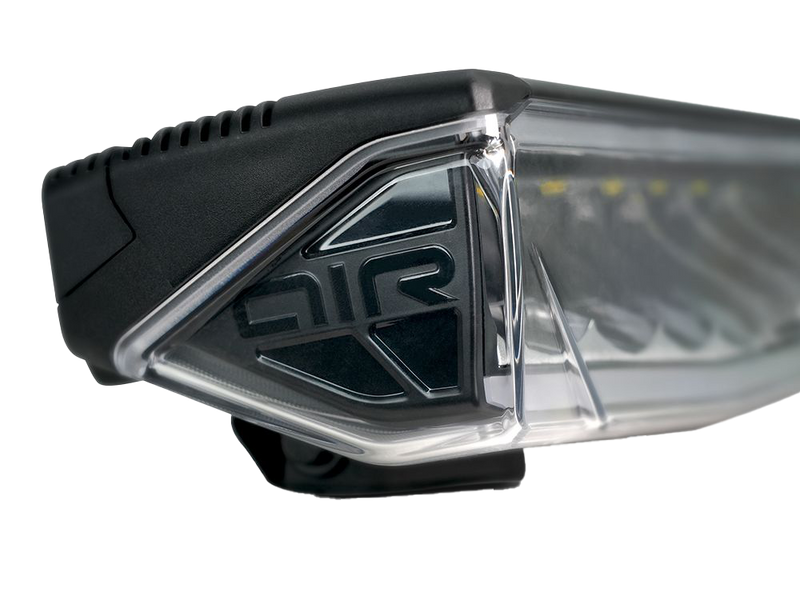

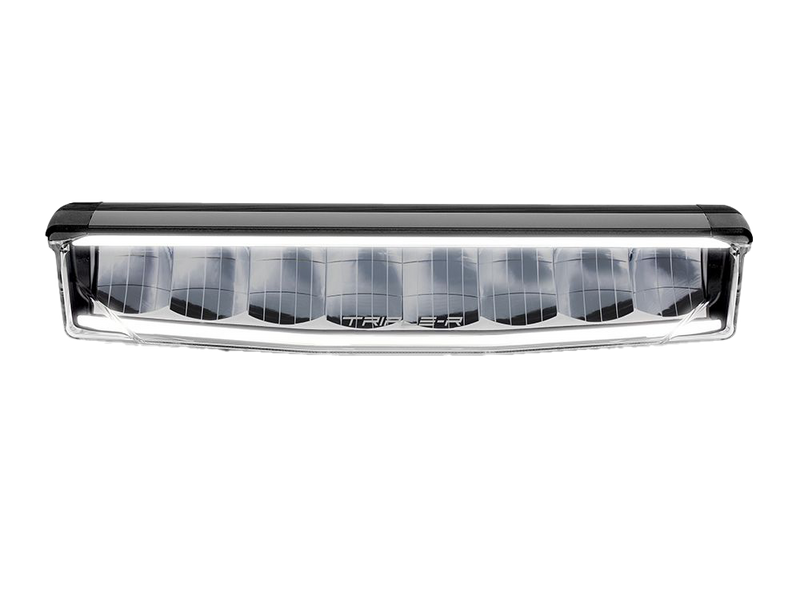

Integrated white or amber position light guides

Adoption of the latest high-efficiency premium-bin LEDs

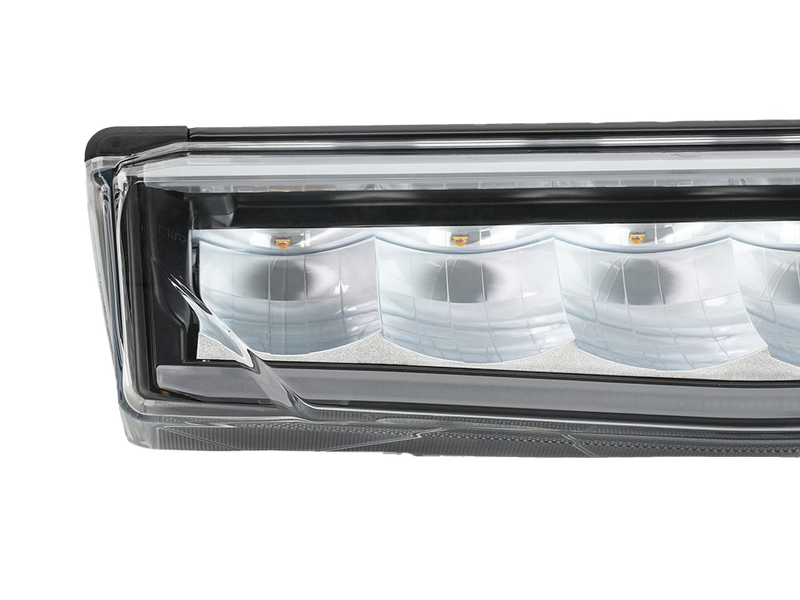

Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road

Patent-pending lamp design

Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.

Threaded mounting locations to enable side mounting (brackets sold separately)

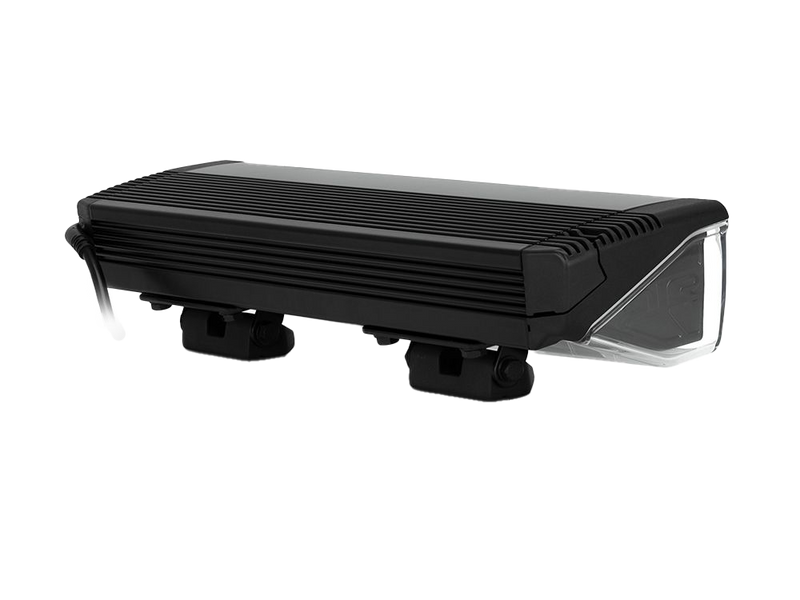

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee

20cm lamp cable complete with male/female 3-pin Superseal connectors

IP68 watertight

5-year warranty

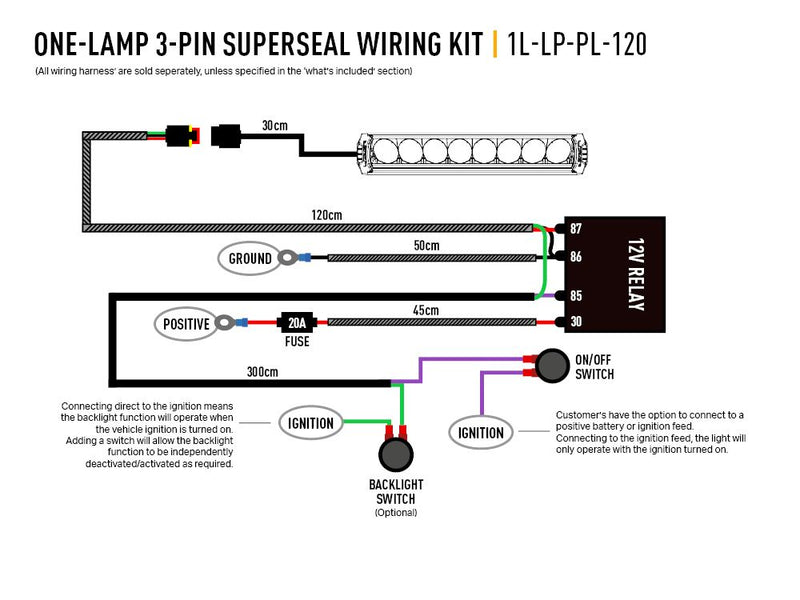

Vehicle wiring kits available

Designed & manufactured in Britain

Technical Specifications

1x AIR-90

BOOST
MODE

LOW OUTPUT MODE


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 3.6 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 9,160 Lm 2,290 Lm
Total Driver 'FOV' Flux † 6,229 Lm 1,557 Lm
Colour Temperature 5000K
Power Consumption 90 Watts 14 Watts
Peak Current Draw 8.5 Amps 1.3 Amps
Current Draw (14.4V) 7.1 Amps 1 Amp
Connector 3-Pin Superseal (+25cm Cable)

DIMENSIONS
Width 16.2''
Depth 4.2''
Height 3.2''

CERTIFICATION
IP Rating # IP68
High Beam DOT / SAE J581 - Low Output Mode only
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

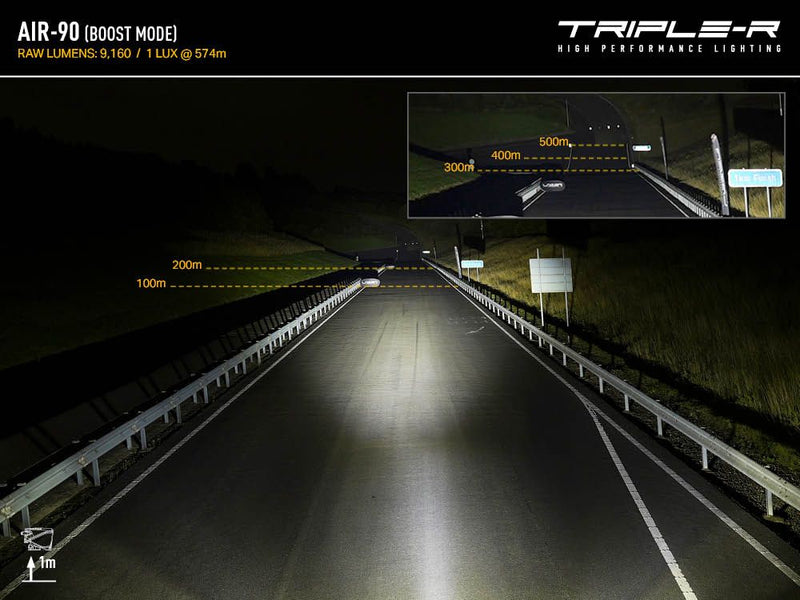

PHOTOMETRIC DATA

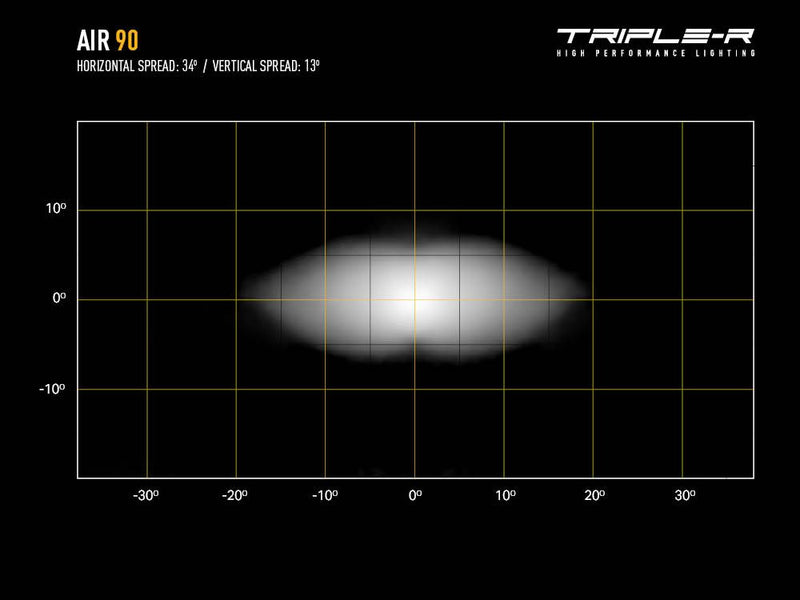

Horizontal / Vertical Beam Angle 34° / 13°

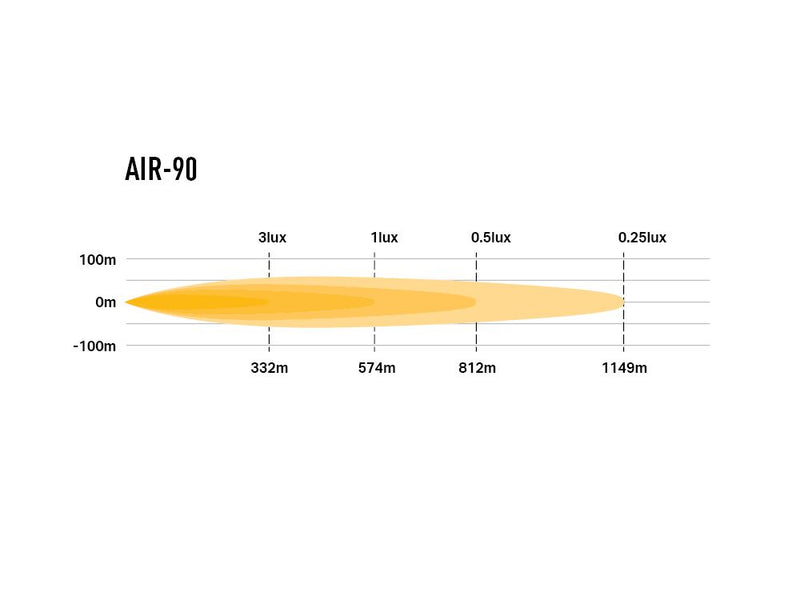

0.25 lx Line 1149m 574m
0.5 lx Line 812m 406m
1 lx Line 574m 287m
3 lx Line 332m 166m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included

  • x1 AIR-90 LED Lamp
  • x2 Centre Mounting Kit (1151K)
  • Installation Instructions
