Product Features
"Formed" light bar featuring injection-molded monocoque lens construction
Curved, ultra-low-profile lamp design for OE-quality vehicle integration
Patent-pending lamp design
Integrated backlight function
Incorporates the latest high-intensity premium-bin LEDs
Combined vacuum-metallized spot and wide optic systems provide optimal light distribution
Dynamic Dip function for seamless transitions between high and low output modes
Black PCBs for a sleek, contemporary, and stealthy appearance
"Unbreakable" polycarbonate lens with a hardcoat finish (lifetime guarantee*)
Textured underside of the polycarbonate lens for a distinctive, modern look
5000K LED color temperature and 80 CRI enhance sharpness and definition
Includes a side mounting kit; anti-theft side mounting kit also available (sold separately)
Electronic thermal management system maximizes light output and extends LED lifespan
In-house pre-treatment and automotive-grade powder topcoat ensure superior corrosion and chemical resistance
Over-voltage protection
Reverse polarity protection
IP68 watertight rating – withstands submersion up to 1.5m for 30 minutes
5-year warranty
10-inch (25 cm) lamp cable with male/female 3-pin Superseal connectors included
Proudly designed and manufactured in the UK
Technical Specifications
| Voltage Range (DC) |
10-32V |
| LED Life |
50,000 hours |
| Weight |
1.5 lbs |
| |
| HIGH BEAM FUNCTION |
| Total Luminous Flux |
11,500 Lm |
4,025 Lm |
| Total Driver 'FOV' Flux † |
6,958 Lm |
2,435 Lm |
| Colour Temperature |
5000K |
| Power Consumption |
120 Watts |
42 Watts |
| Peak Current Draw |
9.6 Amps |
2.6 Amps |
| Current Draw (14.4V) |
8.3 Amps |
2.3 Amps |
| Connector |
3-Pin Superseal (+25cm Cable) |
| |

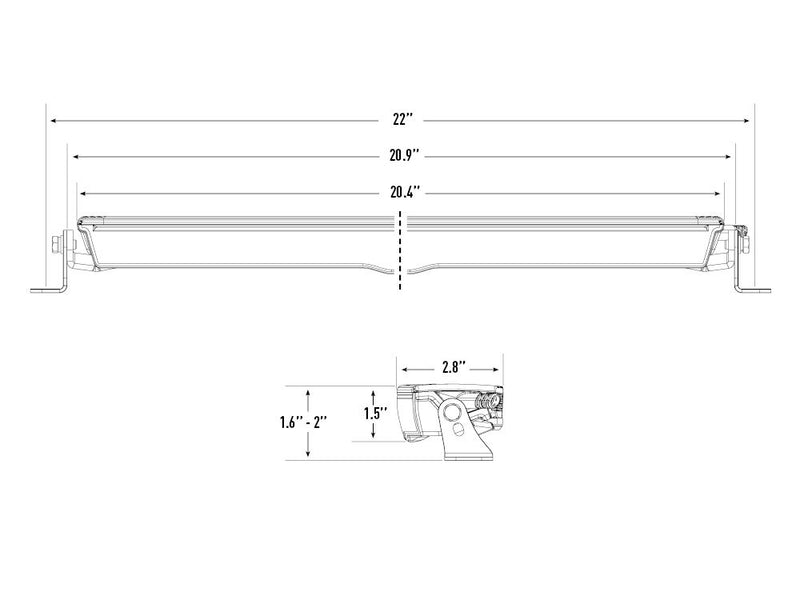

| DIMENSIONS |
| Width |
20.4'' |
| Depth |
2.8'' |
| Height |
1.5'' |
| |
| CERTIFICATION |
| IP Rating # |
IP68 |
| High Beam |
DOT / SAE J581 |
| Salt Spray Test |
ISO 9227 |
| Dump Load Protection |
ISO 7637-2 |
| |
| PHOTOMETRIC DATA |
| Horizontal / Vertical Beam Angle |
60° / 13° |
| 0.25 lx Line |
1095m |
648m |
| 0.5 lx Line |
775m |
458m |
| 1 lx Line |
548m |
324m |
| 3 lx Line |
316m |
187m |
| |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
What's Included
- Glide (with Backlight) LED Lightbar
- Side Mounting Kit (1131K)
- Installation Instructions
