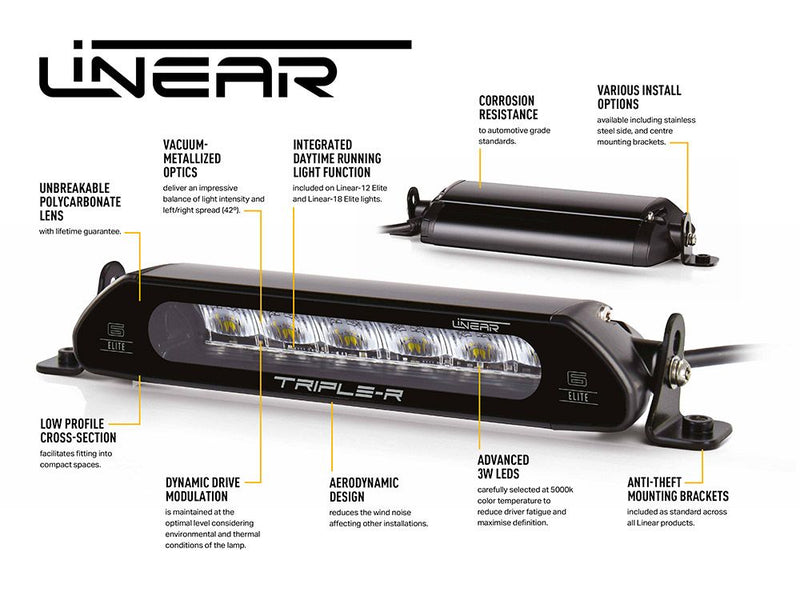

Product Features
Combination of highly efficient 3W ‘premium bin’ LEDs
Integrated Daytime Running Lights
Vacuum-metallized optics deliver wide spread of light
Flexible mounting options – anti-theft mounting brackets included
Sleek, low profile design facilitates installation
Electronic thermal management
Pressure equalization through GoreTex Breather technology
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP68 watertight
5 year warranty

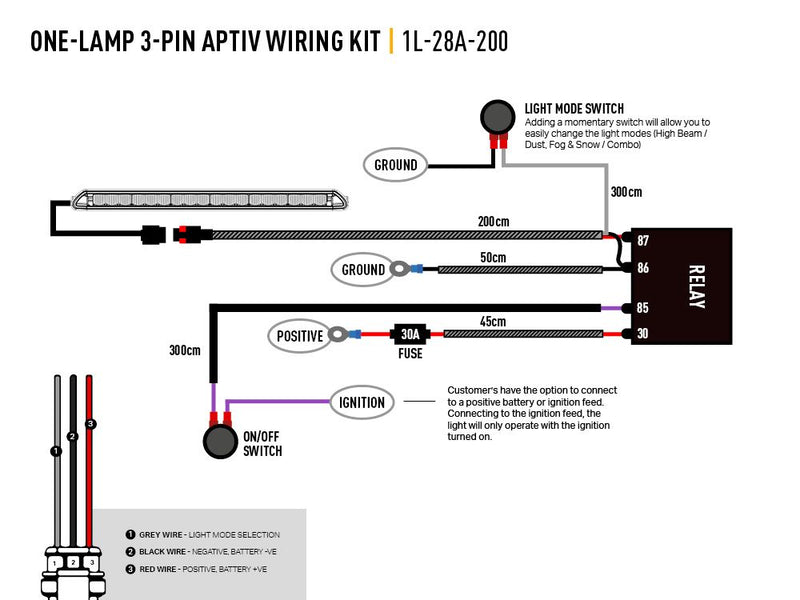

Supplied with male/female connectors (pre-wired)
Designed & manufactured in UK
Technical Specifications

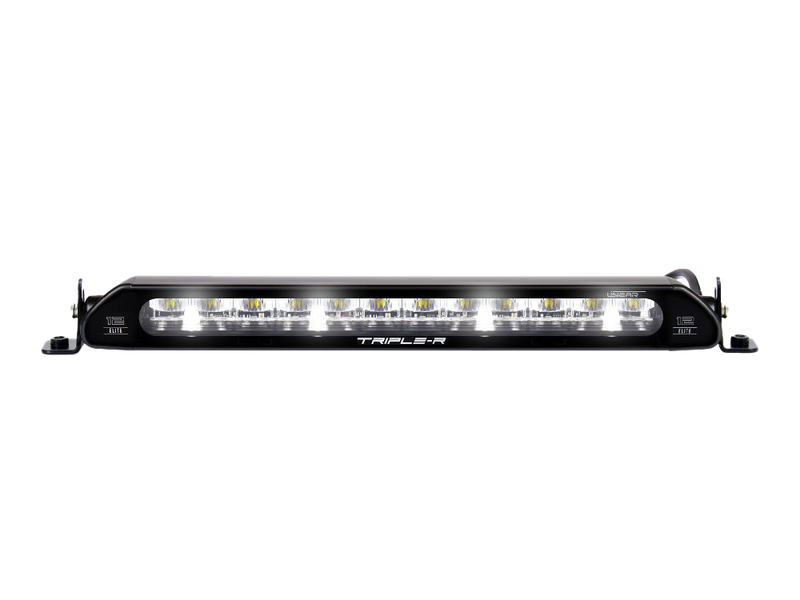

Based on: 1x Linear-12 Elite (with DRL).
| Voltage Range |
10-32V |
| LED Life |
50,000 hours |
| IP Rating |
IP68 |
| Weight |
1.8 lbs |
| HIGH BEAM FUNCTION |
|
| Total Luminous Flux |
8100 Lm |
| Total Driver 'FOV' Flux † |
5767 Lm |
| Color Temperature |
5000k |
| Number of High Output LEDs |
24 |
| Power Consumption |
84 Watts |
| Current Draw (at 14.4V) |
5.8 Amps |
| DIMENSIONS |
|
| Width |
15.0" |
| Depth |
2.44" |
| Height |
1.57" |
| PHOTOMETRIC DATA |
|
| Horizontal Beam Angle |
64 Degrees |
| 0.25 lx Line |
796 metres |
| 0.5 lx Line |
563 metres |
| 1 lx Line |
398 metres |
| 3 lx Line |
230 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included
- 1x Linear-12 Elite LED Light
- 1x Anti-Theft Side Mount Kit (1127K)
- 1x Fitting Instructions
