Product Features
Combination of 48 high efficiency LEDs deliver exceptional lighting performance
Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern for everyday road use
i-LBA mode provides superior short/mid-range visibility

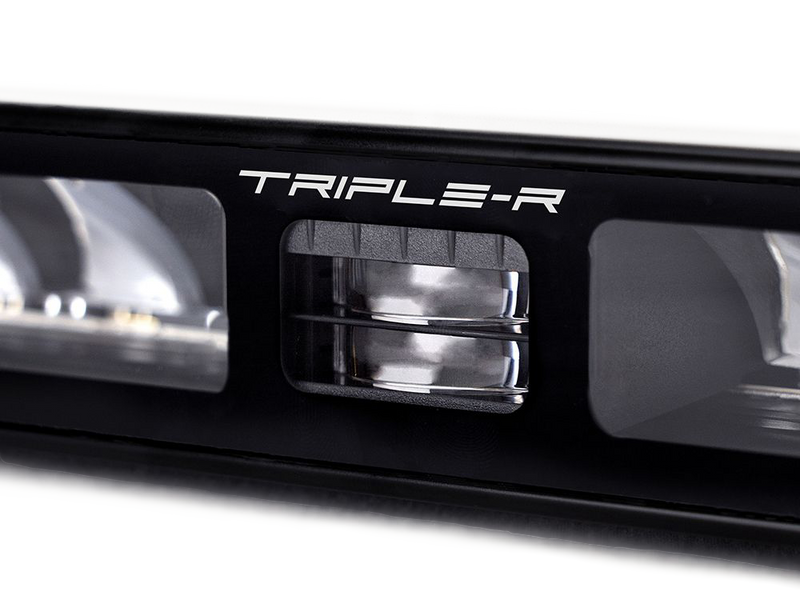

Integrated photoelectric sensors detect oncoming traffic and obstacles so that light output responds to surroundings in Low Beam Assist mode
5000K colour temperature maximises sharpness and colour definition

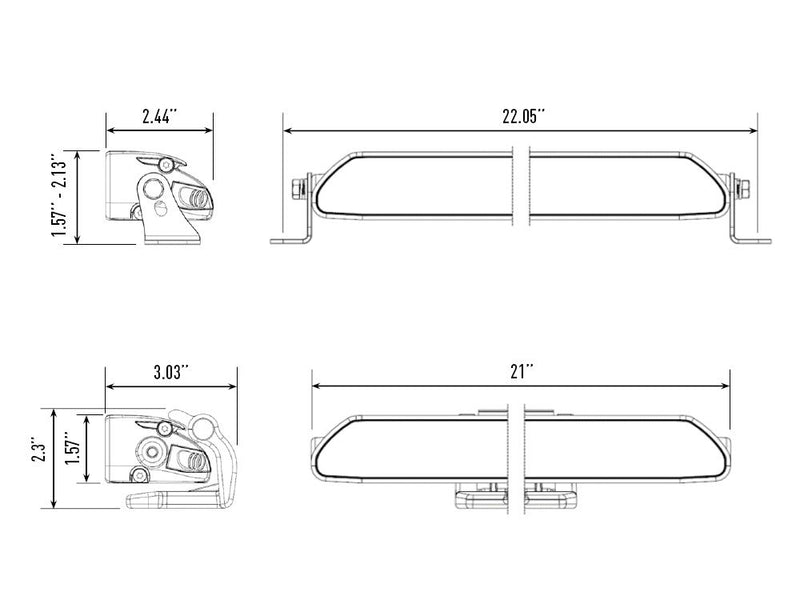

Sleek, low profile design facilitates installation
Flexible mounting options – anti-theft mounting brackets included

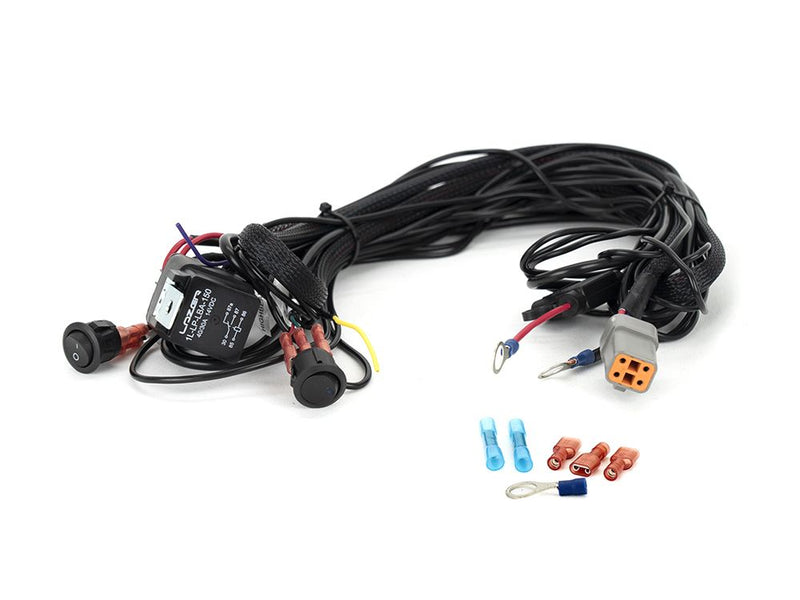

Supplied with One-Lamp Wiring Kit
CAE optimised heatsink offers improved thermal dynamics
Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
Electronic thermal management
‘Unbreakable’ and hardcoated polycarbonate lens
IP68 watertight
5-year warranty
Designed & manufactured in Britain
Technical Specifications

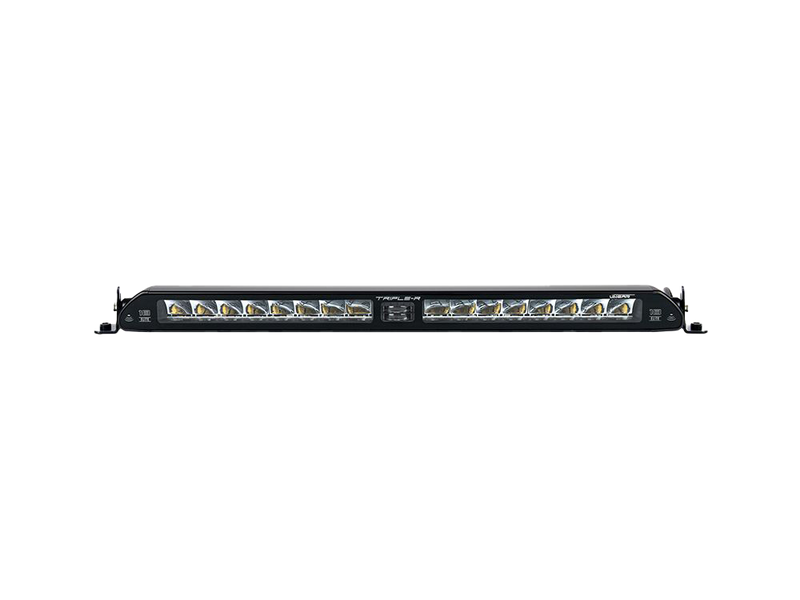

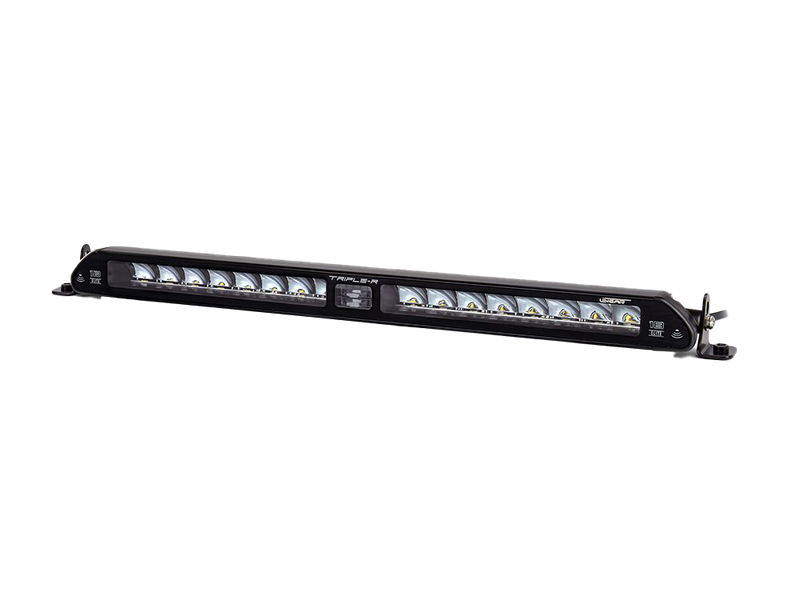

Based on: 1x Linear-18 Elite with i-LBA.
Voltage Range (DC) |
10-32V |
LED Life |
50,000 hrs |
IP Rating |
IP68 |
Weight |
2.4 lb |
HIGH BEAM FUNCTION |
|
Total Luminous Flux |
18000 Lm
|
Total Driver 'FOV' Flux † |
12816 Lm |
Colour Temperature |
5000k |
Number of High Output LEDs |
48 |
Power Consumption |
135 Watts |
Current Draw (at 14.4V) |
10.4 Amps |
CERTIFICATION |
|
High Beam |
N/A |
E-Mark Ref |
N/A |

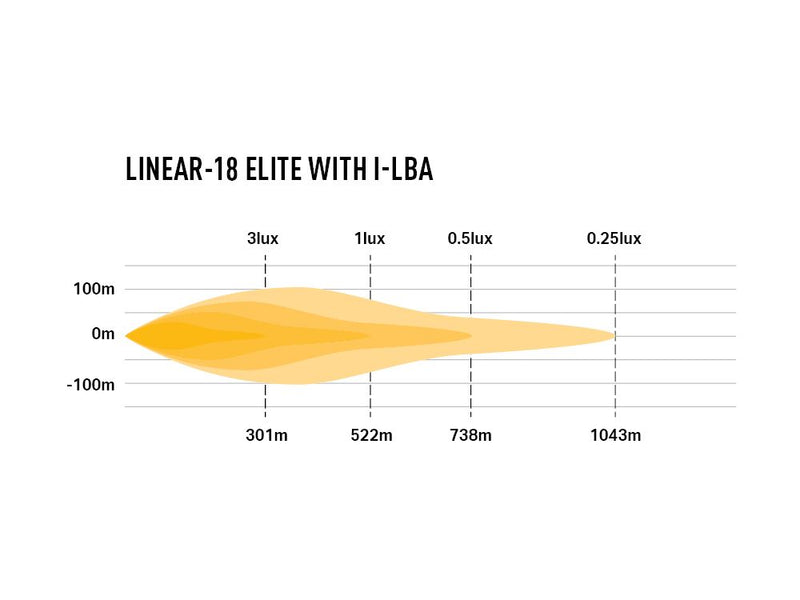

PHOTOMETRIC DATA |
|

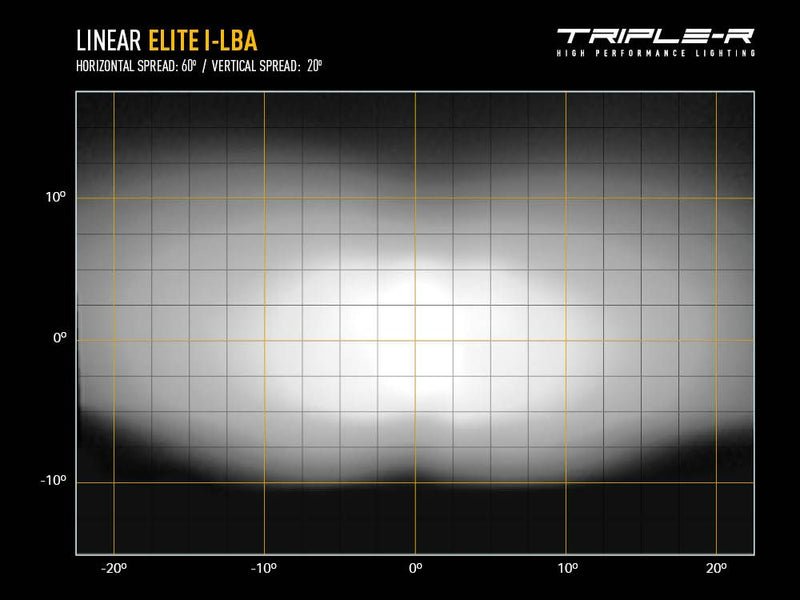

Horiz Beam Angle |
60 Deg |
0.25 lx Line |
1043m |
0.5 lx Line |
738m |
1 lx Line |
522m |
3 lx Line |
301m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included
- 1x Linear-18 Elite with i-LBA
- 1x Single-Lamp Wiring Kit
- 1x Anti-Theft Side Mount Kit
- 1x Fitting Instructions
