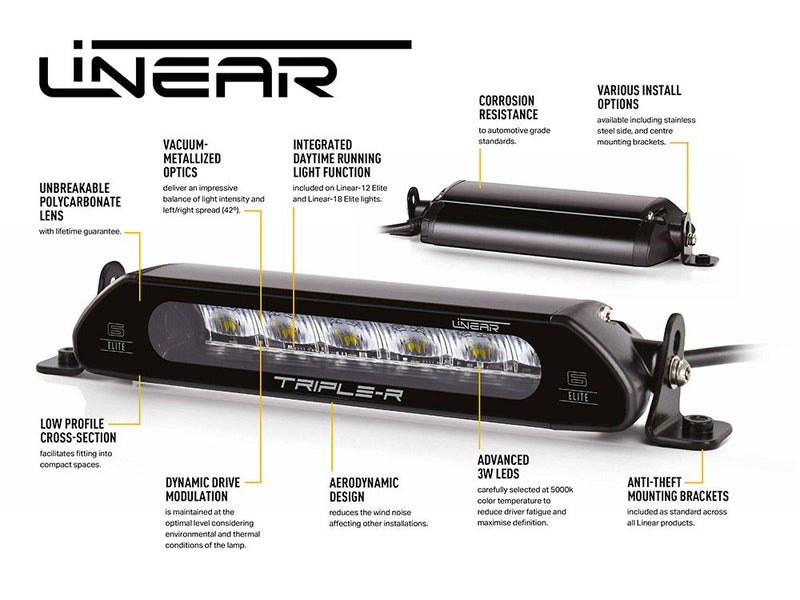

Product Features

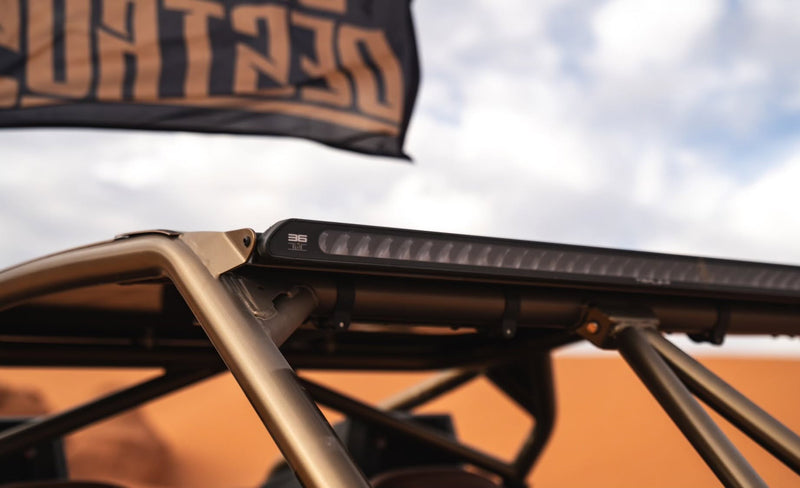

Aerodynamic design virtually eliminates wind noise from roof installations

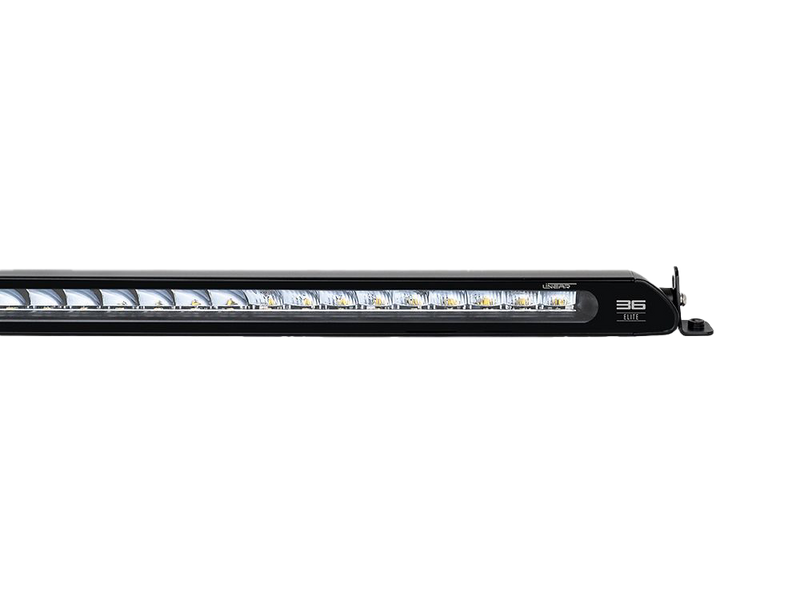

Highly efficient 3W LED technology
Contemporary design features enhance vehicle aesthetics
Automotive grade corrosion resistance
Reduced up/down spread of light eliminates glare from roof installations
Anti-theft security fixings supplied as standard
Electronic thermal management
Pressure equalization through GoreTex Breather technology
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP68 watertight
5 year warranty
Supplied with High Power Aptiv male/female connectors (pre-wired)
Designed & manufactured in the UK
Technical Specification

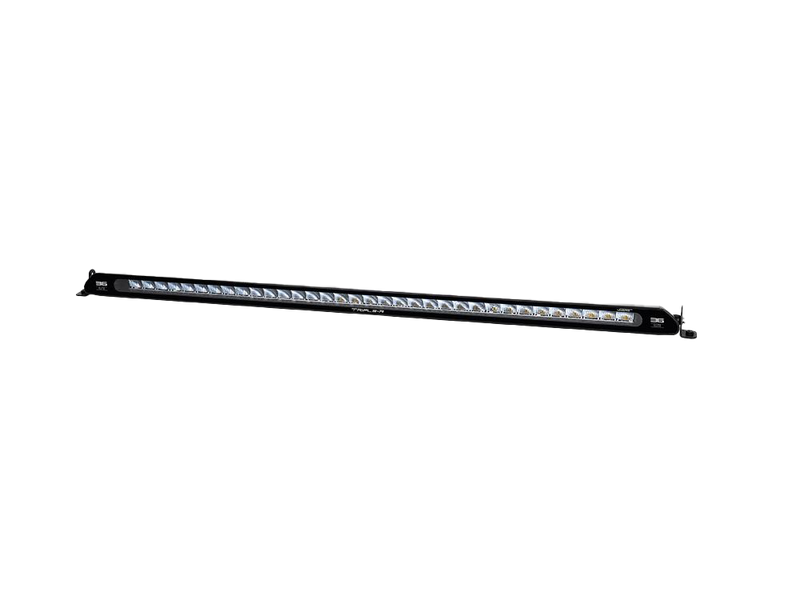

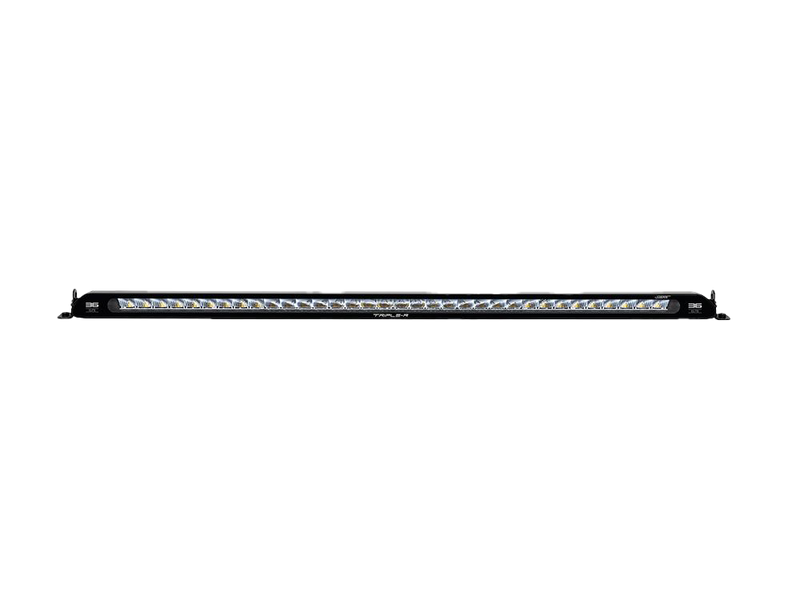

Based on: 1x Linear-36 Elite.
tage Range |
10-32V |
LED Life |
50,000 hours |
IP Rating |
IP68 |
Weight |
6.0 lbs |
HIGH BEAM FUNCTION |
|
Total Luminous Flux |
29,700 Lm |
Total Driver 'FOV' Flux † |
21,325 Lm |
Color Temperature |
5000K |
Number of High Output LEDs |
72 |
Power Consumption |
308 Watts |
Current Draw (at 14.4V) |
21.4 Amps |

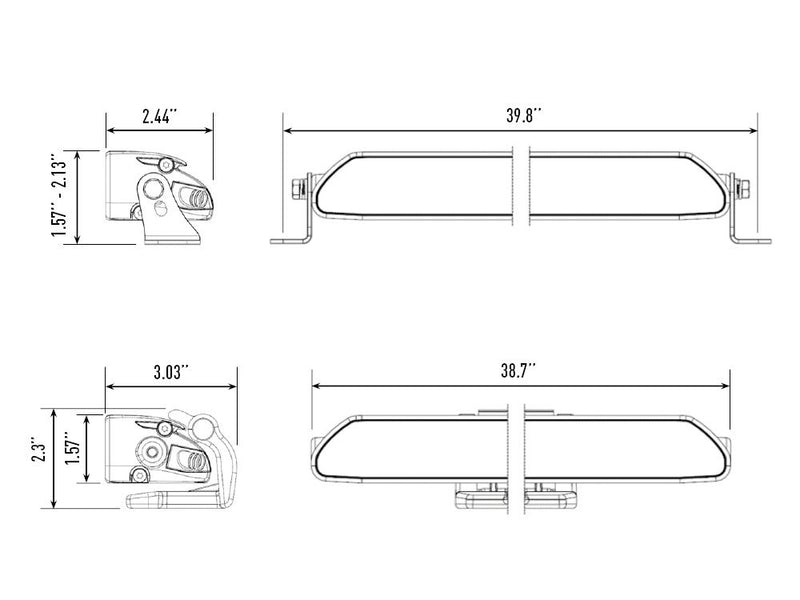

DIMENSIONS |
|
Width |
38.7" |
Depth |
2.44" |
Height |
1.57" |

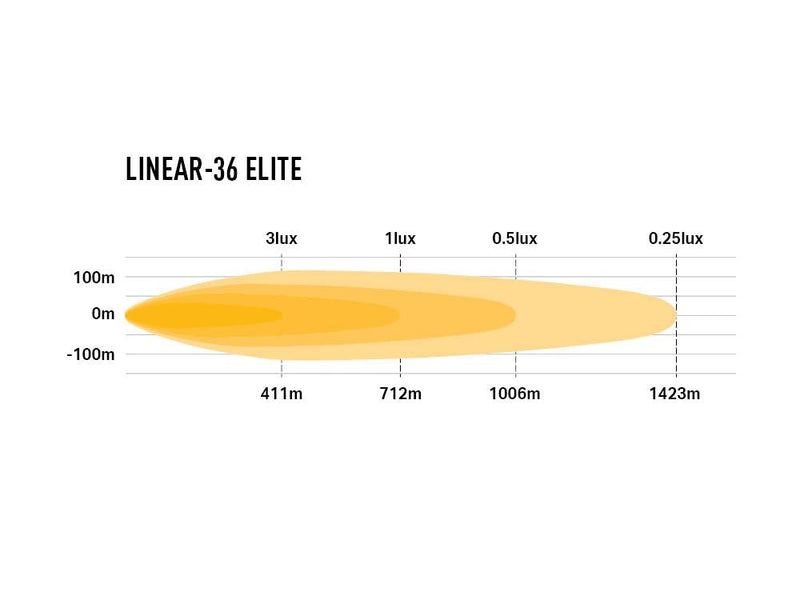

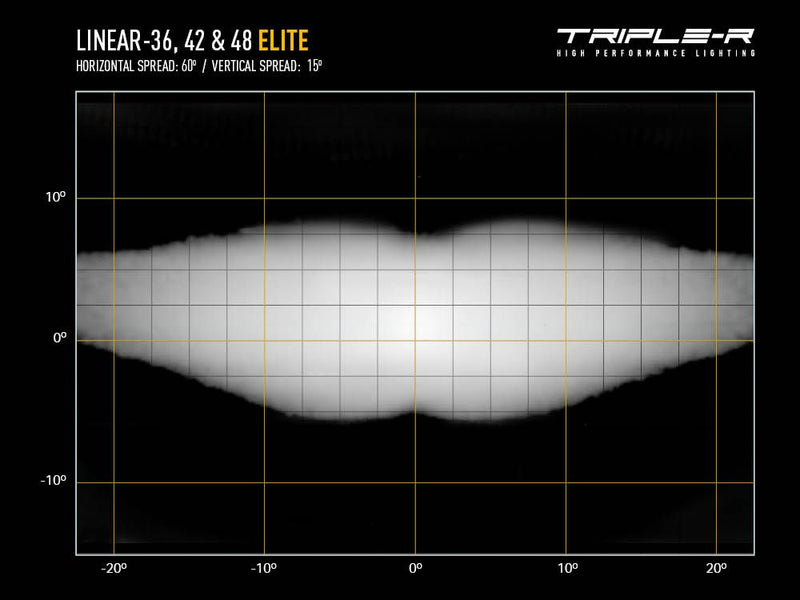

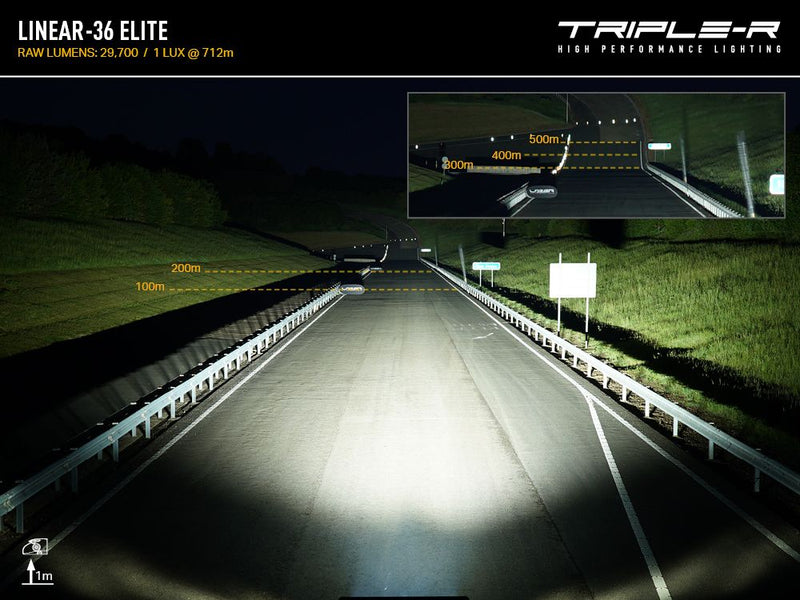

PHOTOMETRIC DATA |
|
Horizontal Beam Angle |
60 degrees |
0.25 lx Line |
1423m |
0.5 lx Line |
1006m |
1 lx Line |
712m |
3 lx Line |
411m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included

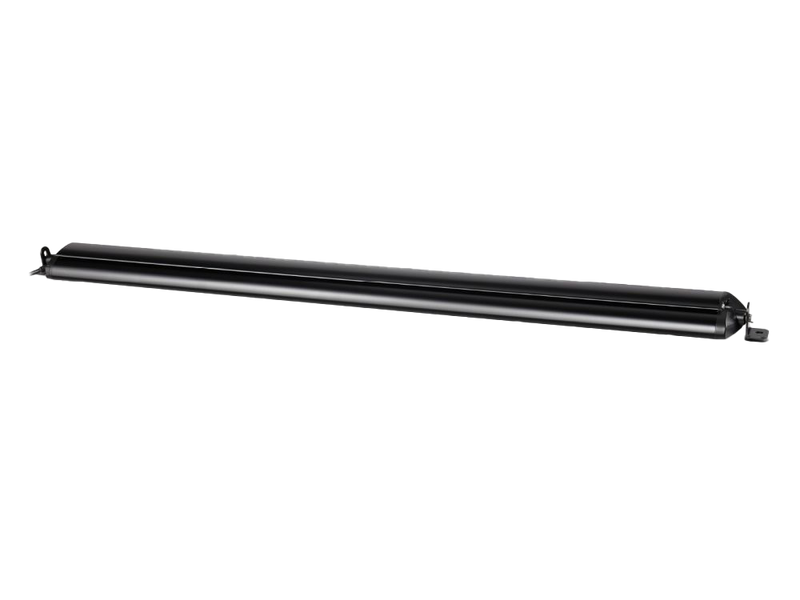

- 1x Linear-36 Elite LED Light

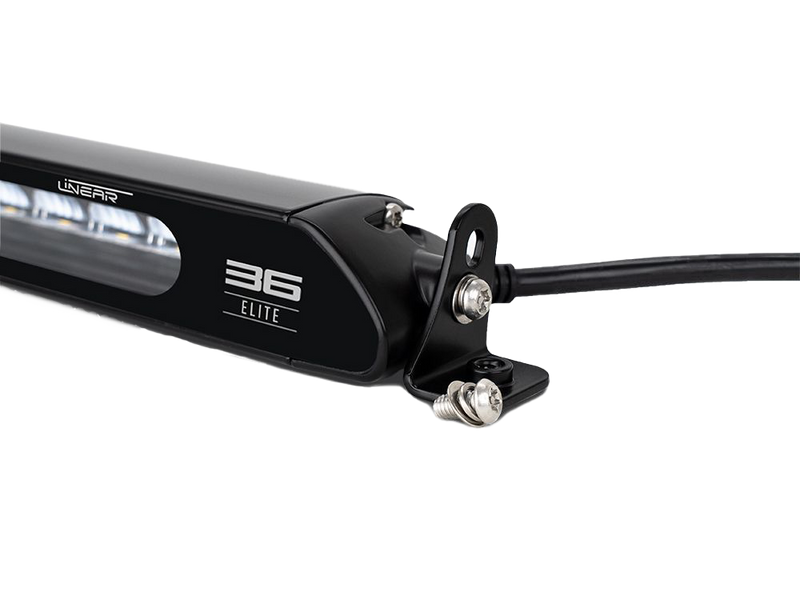

- 1x Anti-Theft Side Mount Kit (1127K)

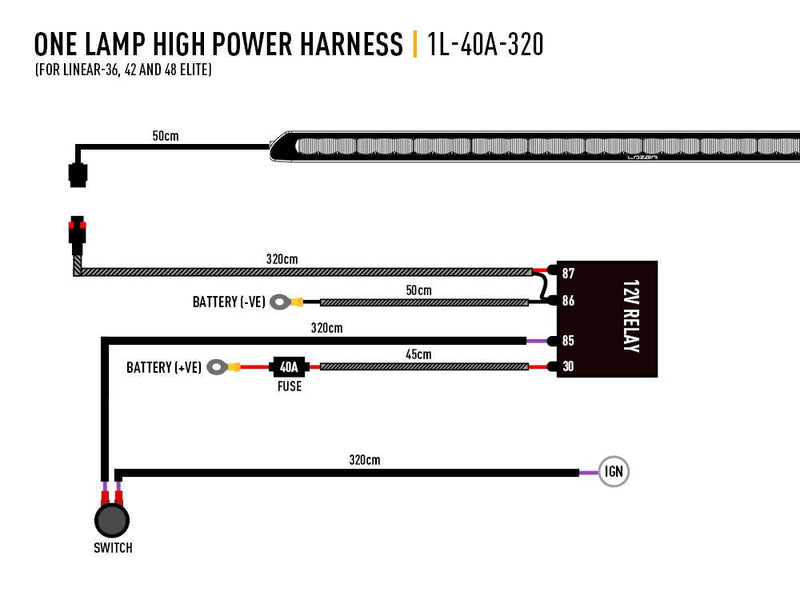

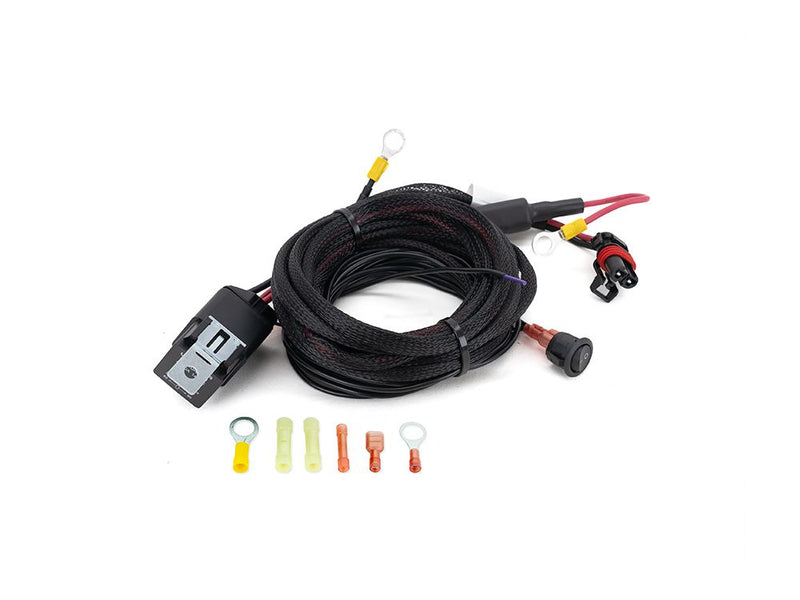

- 1x One-Lamp Harness (1L-40A-320)
- 1x Fitting Instructions
