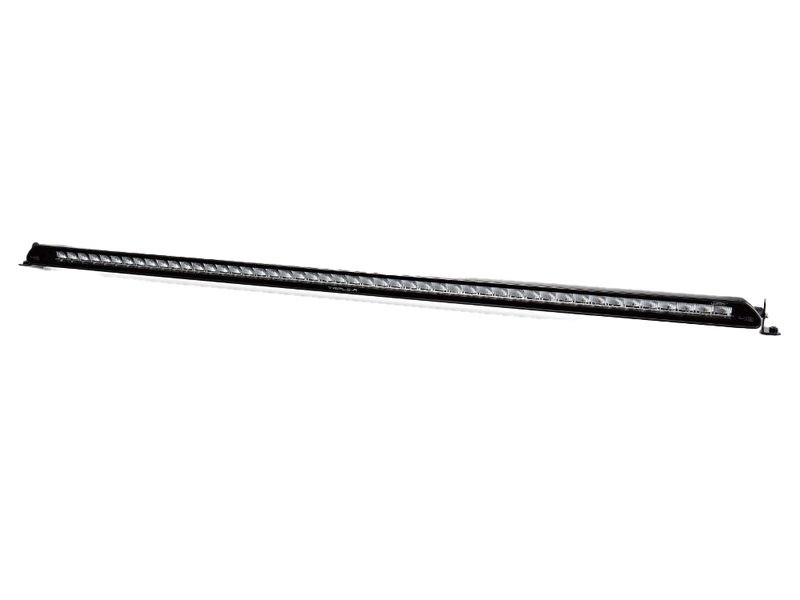

Triple R Linear-42 Elite

$1,200.00

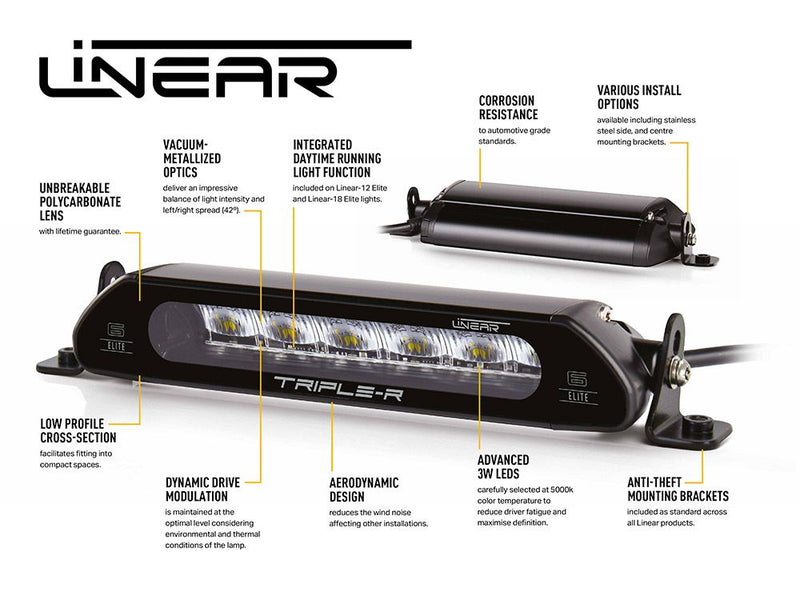

Product Features

Aerodynamic design virtually eliminates wind noise from roof installations

Highly efficient 3W LED technology

Contemporary design features enhance vehicle aesthetics

Automotive grade corrosion resistance

Reduced up/down spread of light eliminates glare from roof installations

Anti-theft security fixings supplied as standard

Electronic thermal management

Pressure equalization through GoreTex Breather technology

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP68 watertight

5 year warranty

Supplied with High Power Aptiv male/female connectors (pre-wired)

Designed & manufactured in the UK

Technical Specifications

Based on: 1x Linear-42 Elite.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
IP Rating IP68
Weight 7.7 lb
HIGH BEAM FUNCTION
Total Luminous Flux 33300 Lm
Total Driver 'FOV' Flux † 23909 Lm
Colour Temperature 5000K
Number of High Output LEDs 84
Power Consumption 355 Watts
Current Draw (at 14.4V) 24.7 Amps

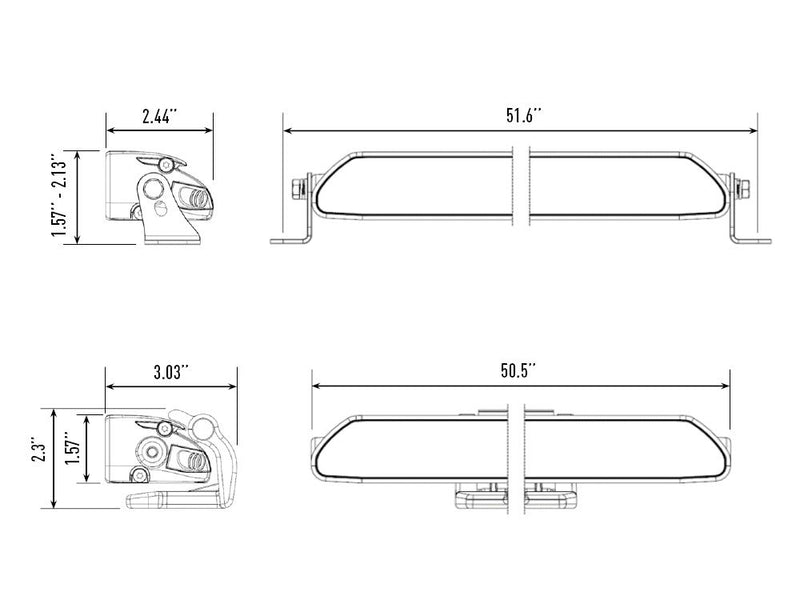

DIMENSIONS
Width 1132 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA

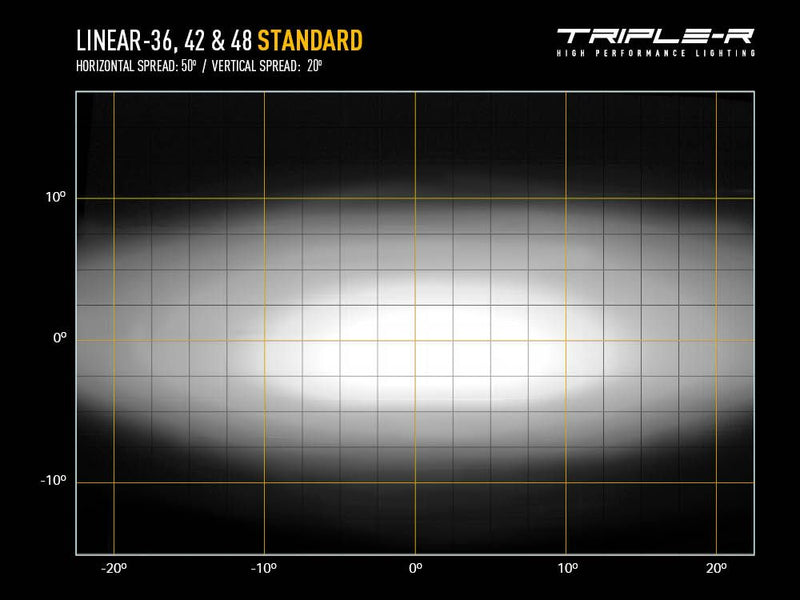

Horizontal Beam Angle 60 degrees
0.25 lx Line 1530m
0.5 lx Line 1082m
1 lx Line 765m
3 lx Line 442m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included

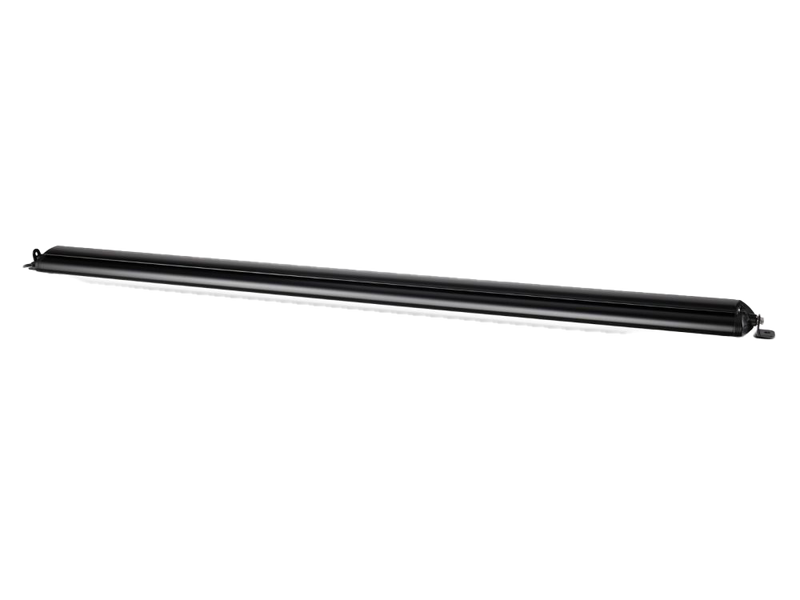

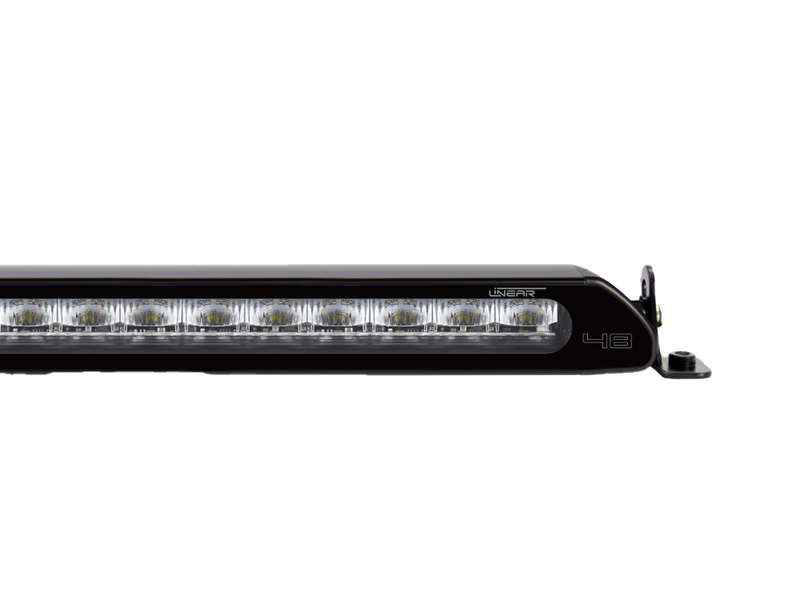

  • 1x Linear-42 Elite LED Light
  • 1x Anti-Theft Side Mount Kit (1127K)

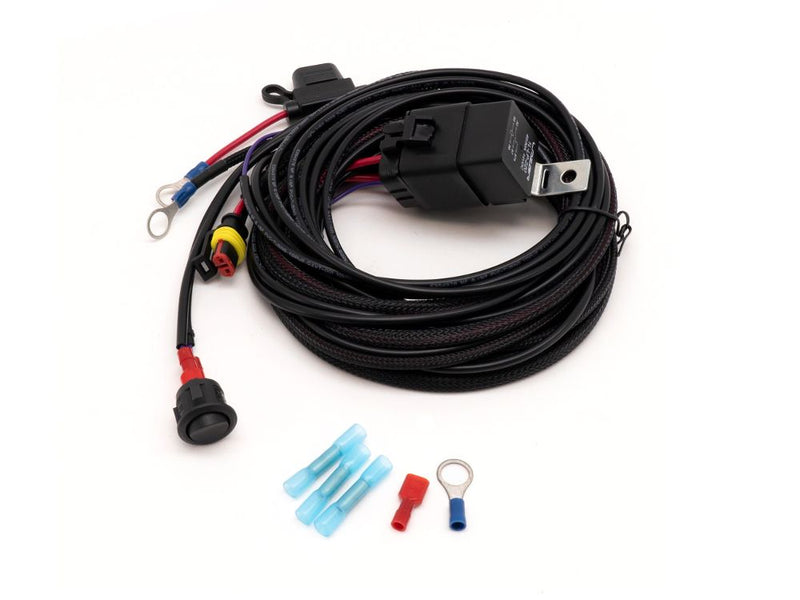

  • 1x One-Lamp Harness (1L-40A-320)
  • 1x Fitting Instructions
