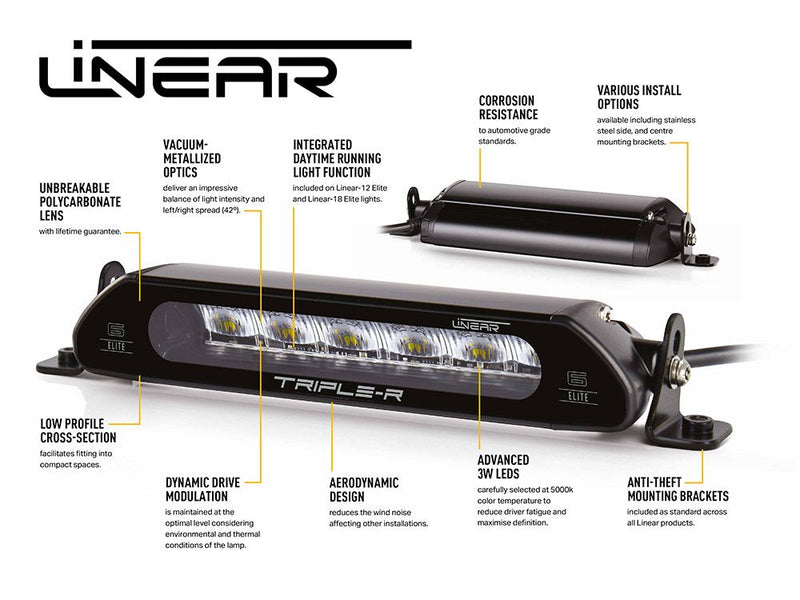

Product Features
Aerodynamic design virtually eliminates wind noise from roof installations
Highly efficient 3W LED technology
Contemporary design features enhance vehicle aesthetics
Automotive grade corrosion resistance
Reduced up/down spread of light eliminates glare from roof installations
Anti-theft security fixings supplied as standard
Electronic thermal management
Pressure equalization through GoreTex Breather technology
One-Lamp Harness Kit included with lamp
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP68 watertight
5 year warranty
Supplied with male/female connectors (pre-wired)
Designed & manufactured in the UK
Technical Specifications
| Voltage Range |
10-32V |
| LED Life |
50,000 hours |
| IP Rating |
IP68 |
| Weight |
8.8 lbs |
| HIGH BEAM FUNCTION |
|
| Total Luminous Flux |
18000 Lm |
| Total Driver 'FOV' Flux † |
12816 Lm |
| Color Temperature |
5000K |
| Number of High Output LEDs |
48 |
| Power Consumption |
168 Watts |
| Current Draw (at 14.4V) |
11.7 Amps |

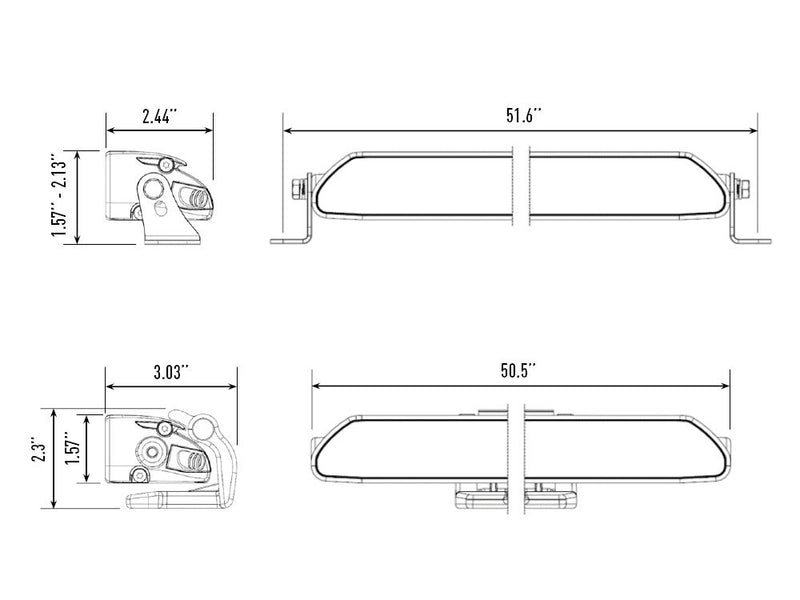

| DIMENSIONS |
|
| Width |
50.5" |
| Depth |
2.44" |
| Height |
1.57" |

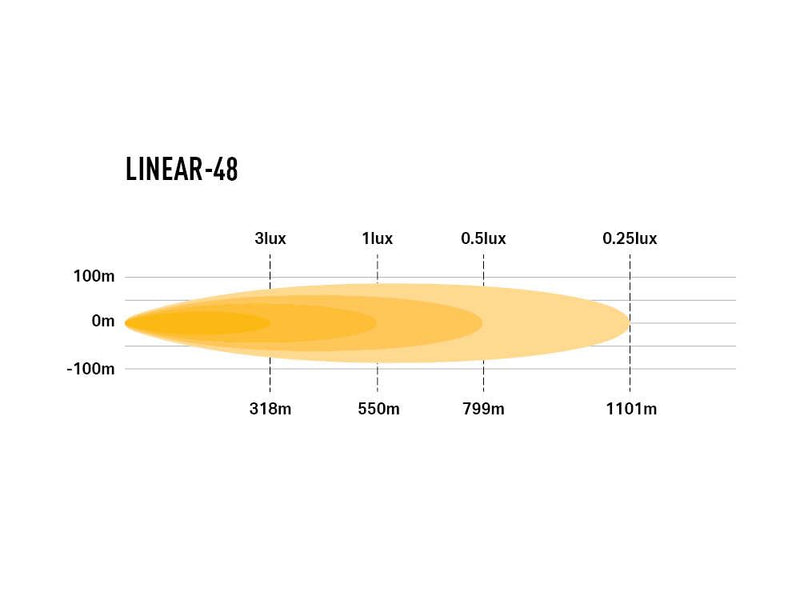

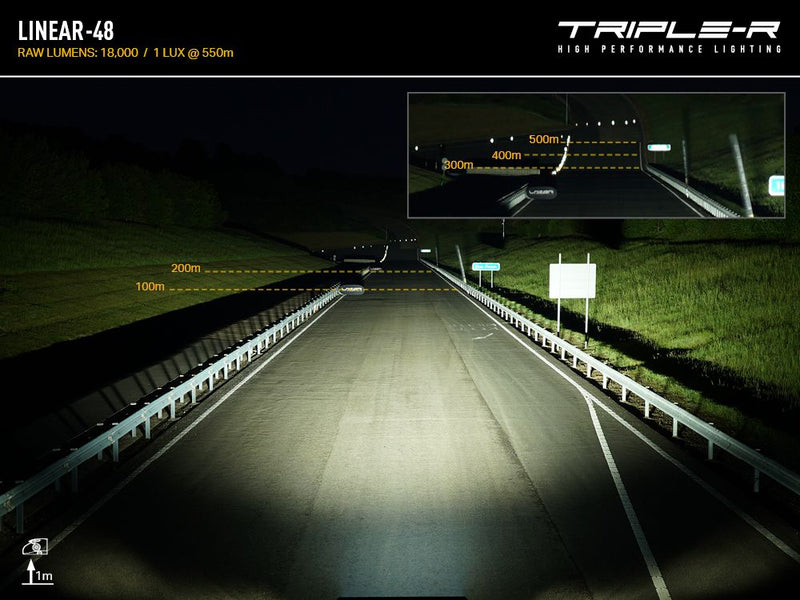

| PHOTOMETRIC DATA |
|

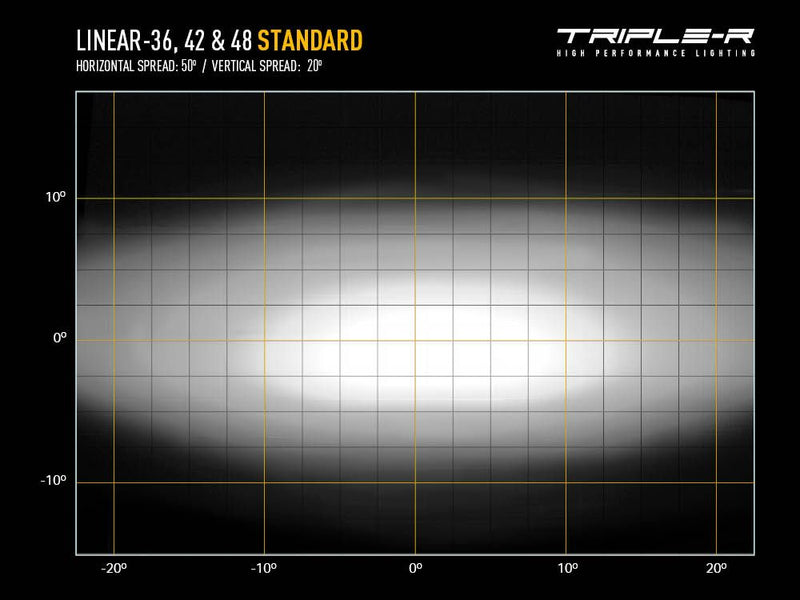

| Horizontal Beam Angle |
50 degrees |
| 0.25 lx Line |
1101 metres |
| 0.5 lx Line |
779 metres |
| 1 lx Line |
550 metres |
| 3 lx Line |
318 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included

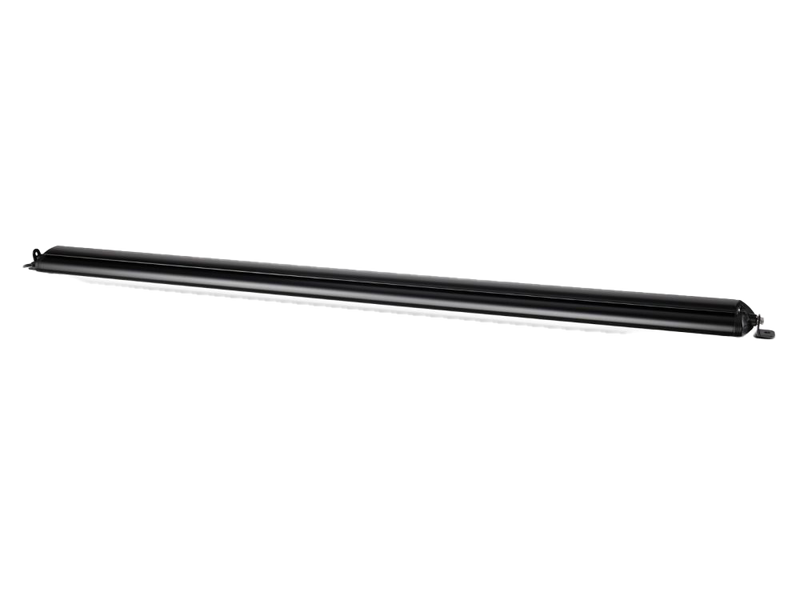

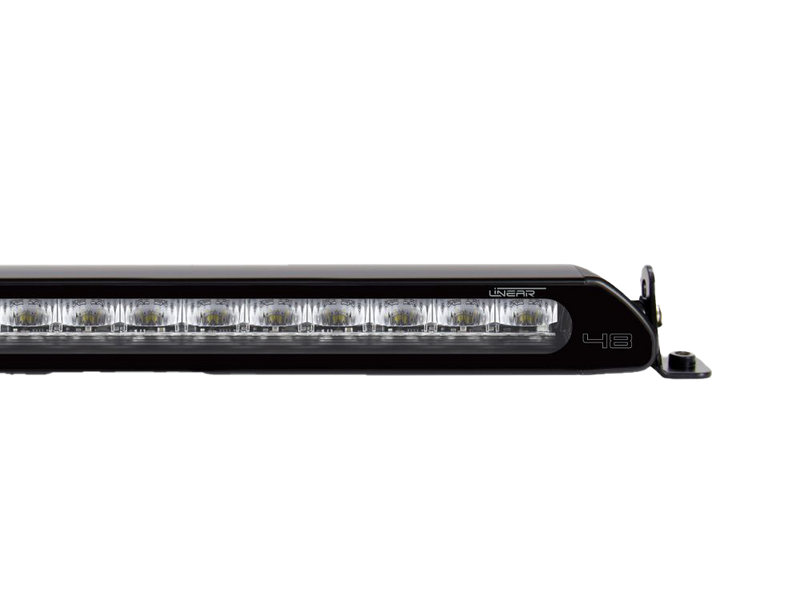

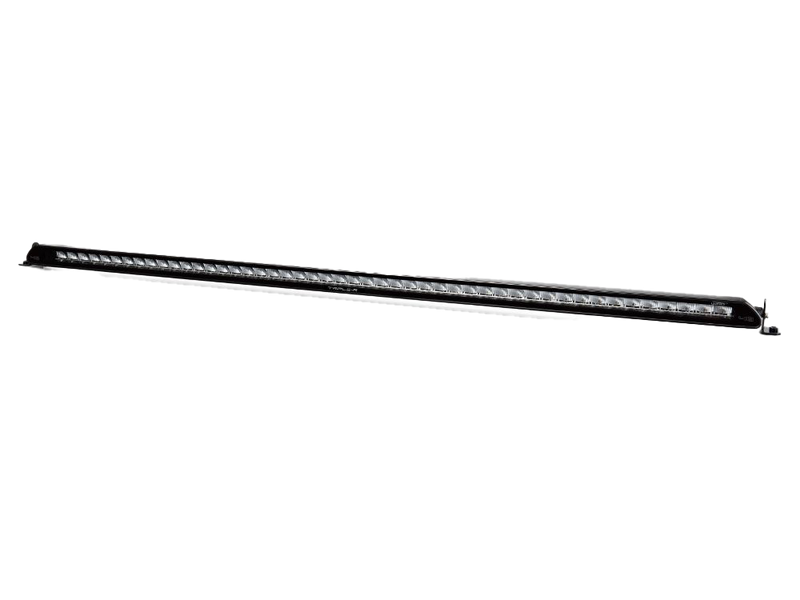

- 1x Linear-48 LED Light
- 1x Anti-Theft Side Mount Kit (1127K)

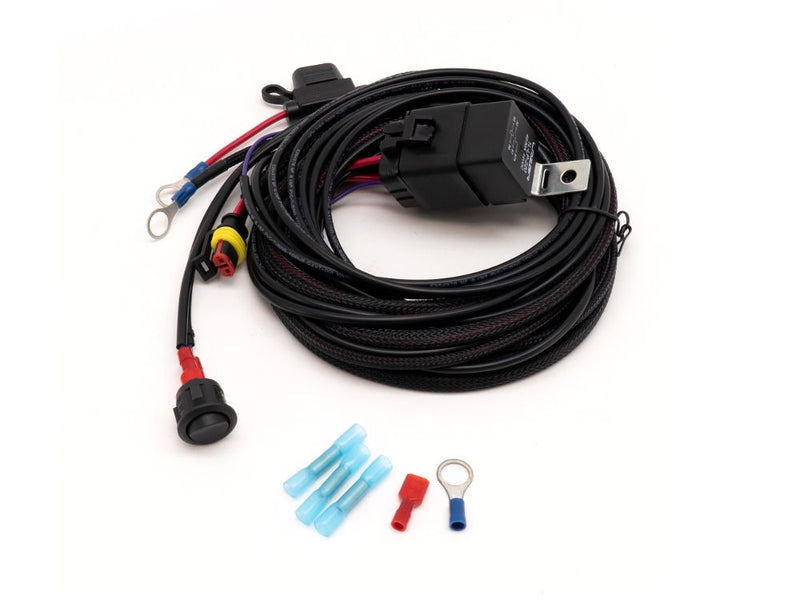

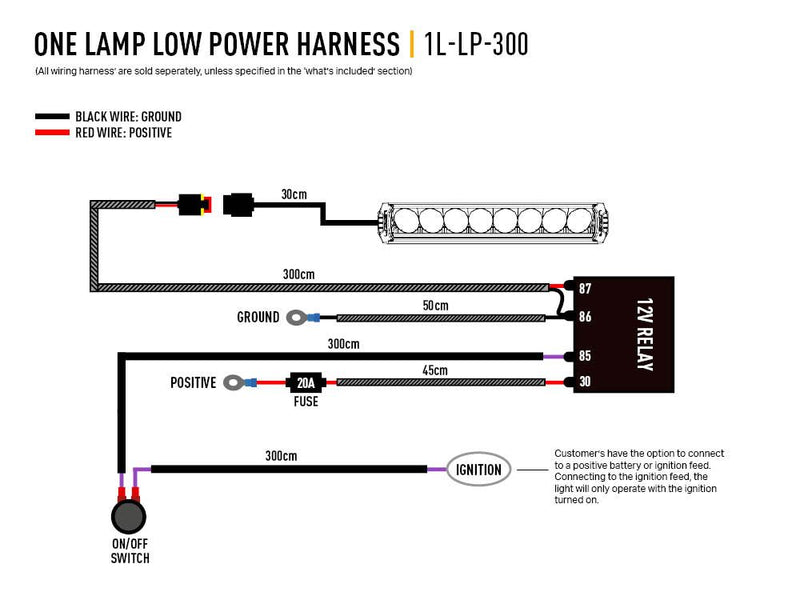

- 1x One-Lamp Harness Kit (1L-LP-300)
- 1x Fitting Instructions
