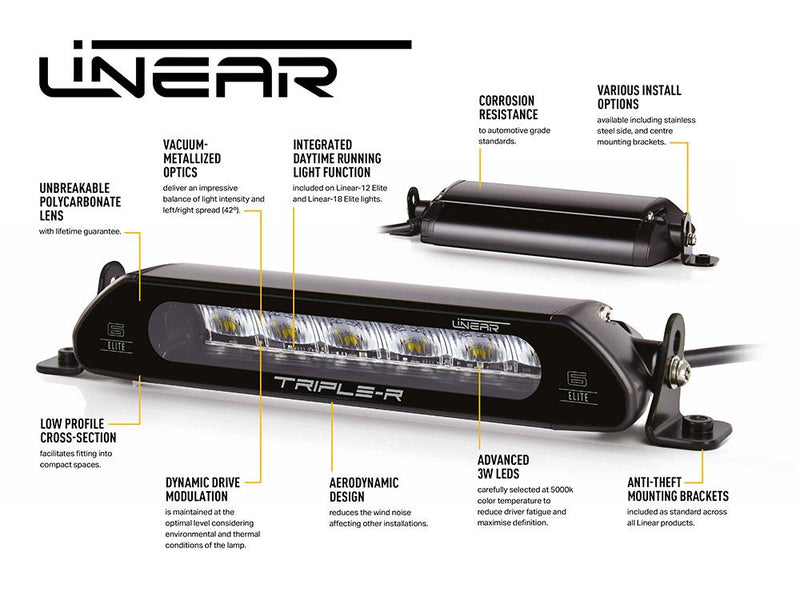

Product Features
Aerodynamic design virtually eliminates wind noise from roof installations
Highly efficient 3W LED technology
Contemporary design features enhance vehicle aesthetics
Automotive grade corrosion resistance
Reduced up/down spread of light eliminates glare from roof installations
Anti-theft security fixings supplied as standard
Electronic thermal management
Pressure equalization through GoreTex Breather technology
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP68 watertight
5 year warranty
Supplied with male/female connectors (pre-wired)
Designed & manufactured in the UK
Technical Specifications
Based on: 1x Linear-48 Elite.
| Voltage Range (DC) |
10-32V |
| LED Life |
50,000 hours |
| IP Rating |
IP68 |
| Weight |
8.8lb |
| HIGH BEAM FUNCTION |
|
| Total Luminous Flux |
34800 Lm |
| Total Driver 'FOV' Flux † |
24986 Lm |
| Colour Temperature |
5000K |
| Number of High Output LEDs |
96 |
| Power Consumption |
364 Watts |
| Current Draw (at 14.4V) |
25.3 Amps |

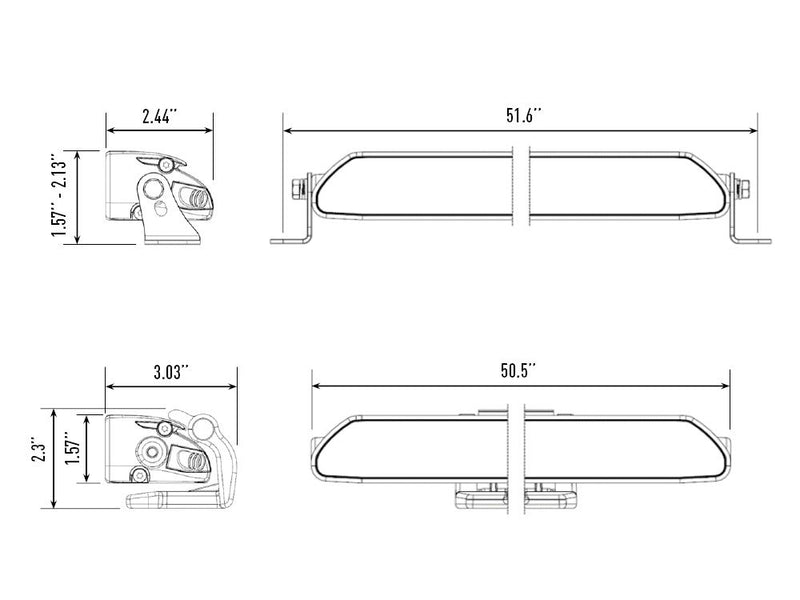

| DIMENSIONS |
|
| Width |
1282 mm |
| Depth |
62 mm |
| Height |
40 mm |

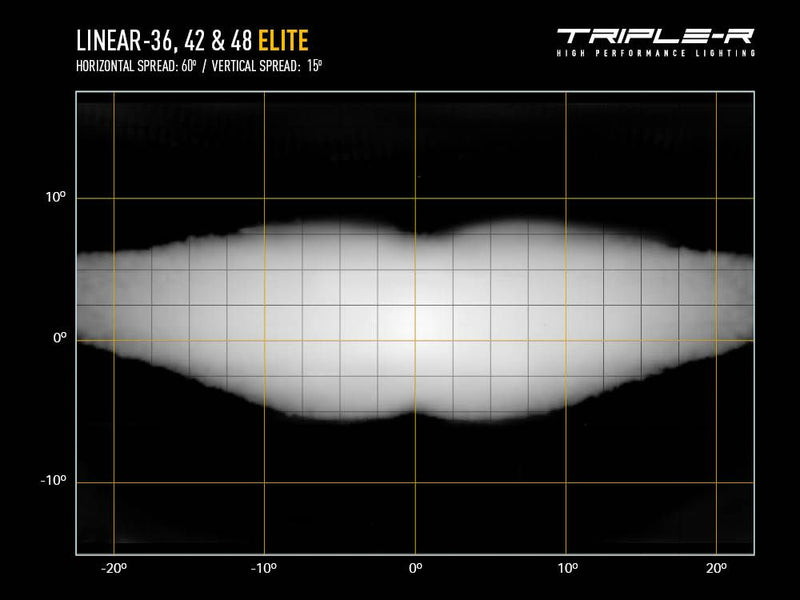

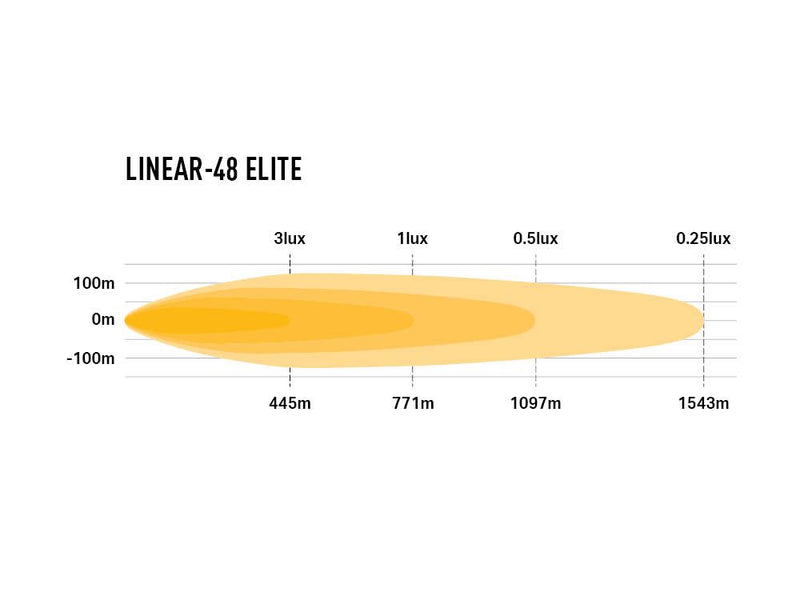

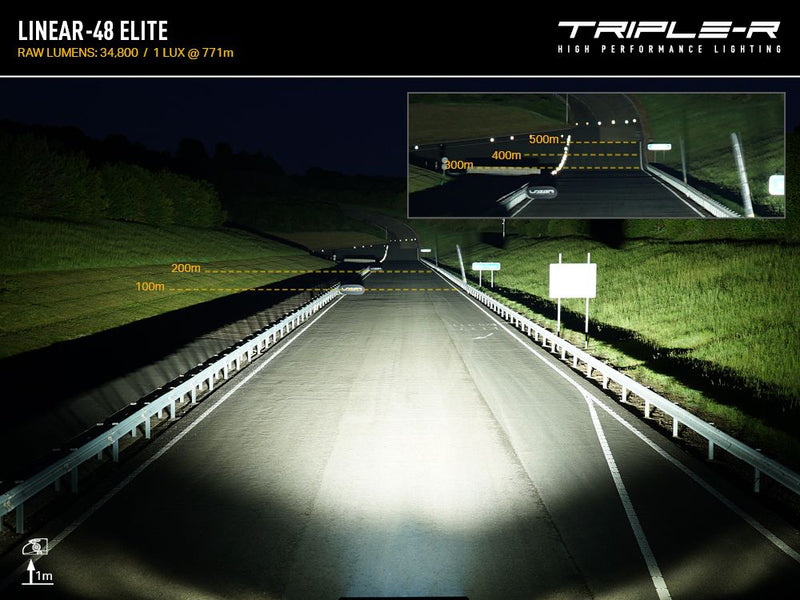

| PHOTOMETRIC DATA |
|
| Horizontal Beam Angle |
60° |
| 0.25 lx Line |
1543m |
| 0.5 lx Line |
1091m |
| 1 lx Line |
771m |
| 3 lx Line |
445m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
What's Included

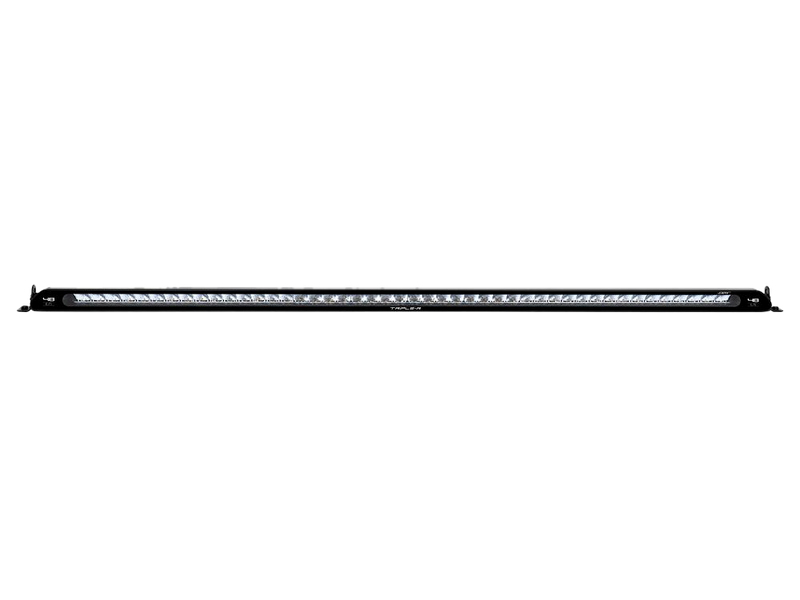

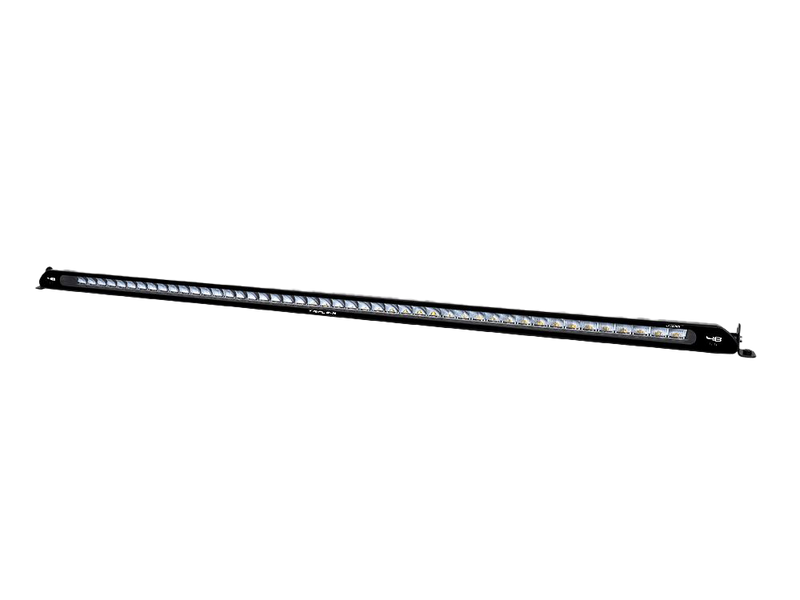

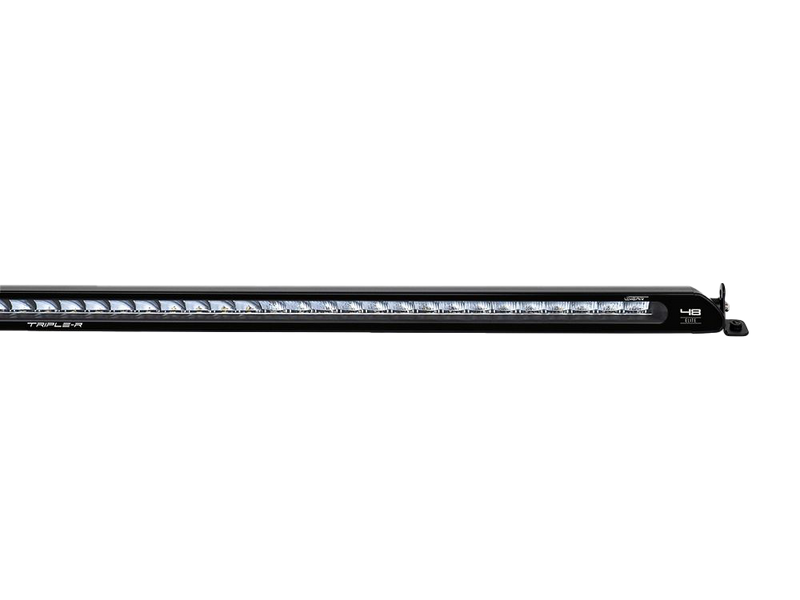

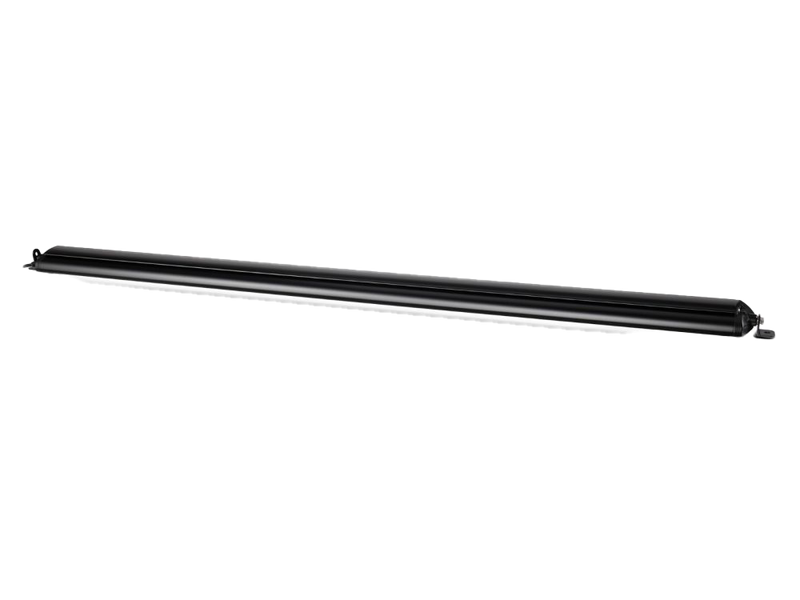

- 1x Linear-48 Elite LED Light

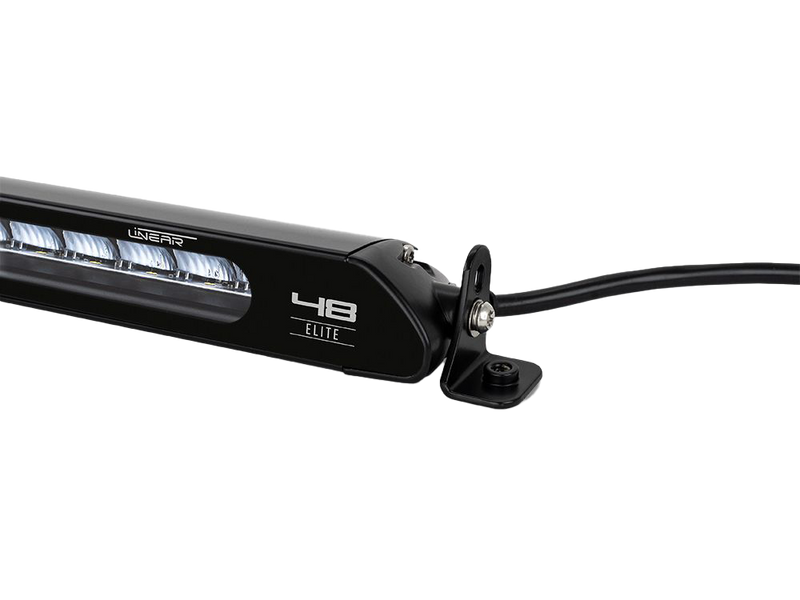

- 1x Anti-Theft Side Mount Kit (1127K)

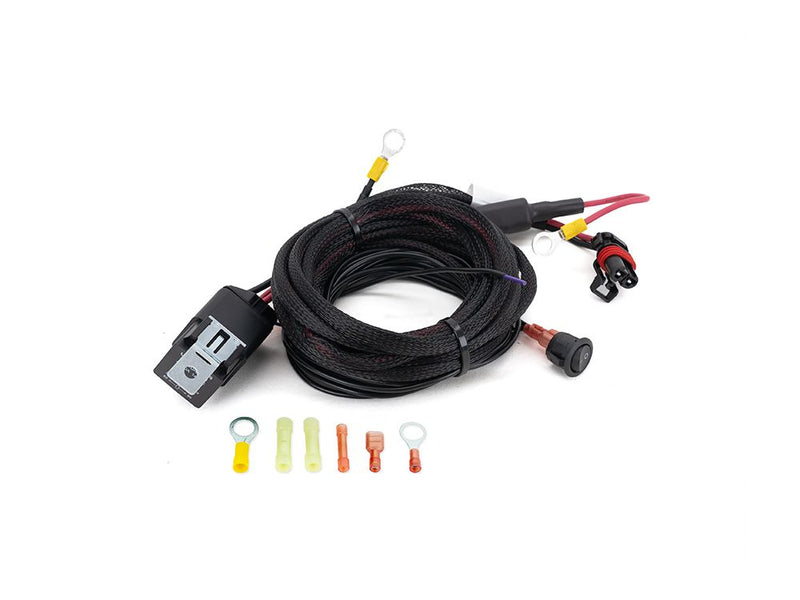

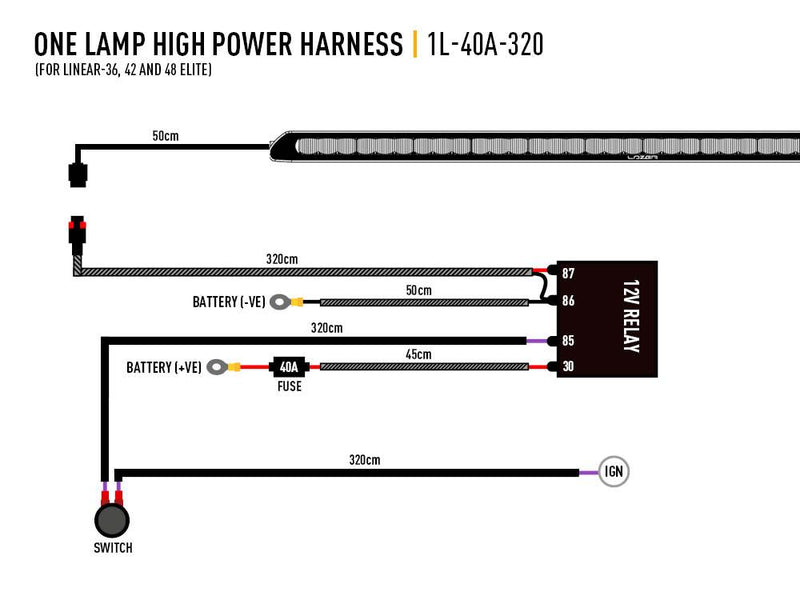

- 1x One-Lamp Harness (1L-40A-320)
- 1x Fitting Instructions
