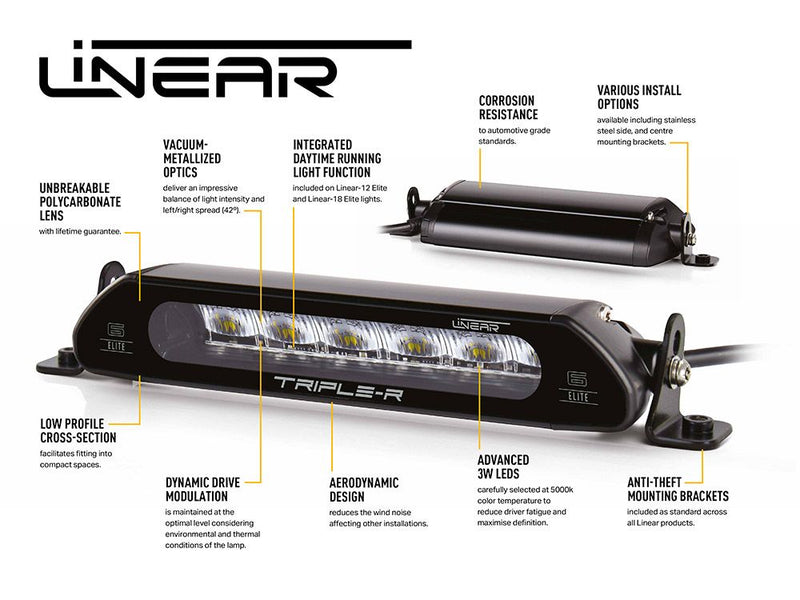

Product Features
Combination of highly efficient 3W ‘premium bin’ LEDs
PC Yellow LEDs deliver an efficient solution for yellow colored light output
Vacuum-metallized optics deliver wide spread of light
Flexible mounting options – anti-theft mounting brackets included
Sleek, low profile design facilitates installation
Electronic thermal management
Pressure equalization through GoreTex Breather technology
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP68 watertight
5 year warranty

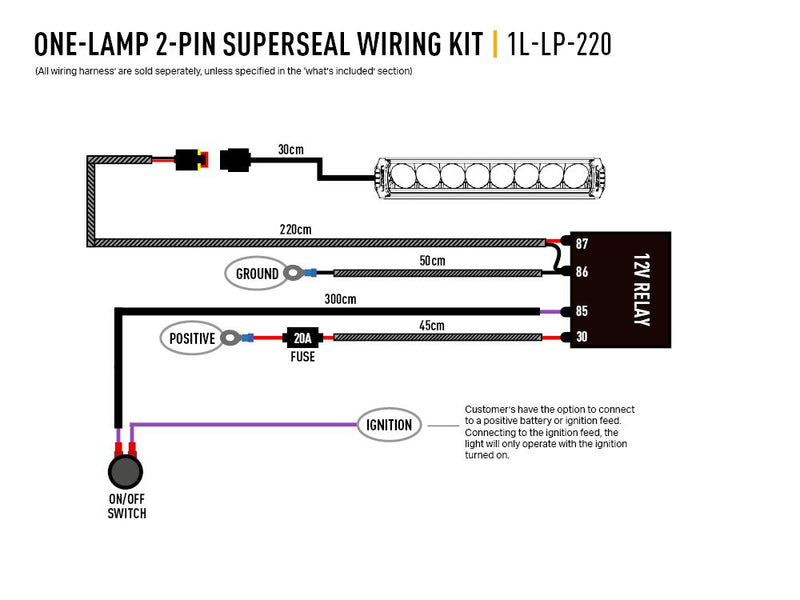

Supplied with male/female connectors (pre-wired)
Designed & manufactured in UK
Technical Specifications
Based on: 1x Linear-6 Elite (Yellow).
Voltage Range |
10-32V |
LED Life |
50,000 hours |
IP Rating |
IP68 |
Weight |
1.1 lbs |
HIGH BEAM FUNCTION |
|
Total Luminous Flux |
4,320 Lm |
Total Driver 'FOV' Flux † |
2,839 Lm |
Color Temperature |
PC Yellow |
Number of High Output LEDs |
12 |
Power Consumption |
42 Watts |
Current Draw (at 14.4V) |
2.9 Amps |

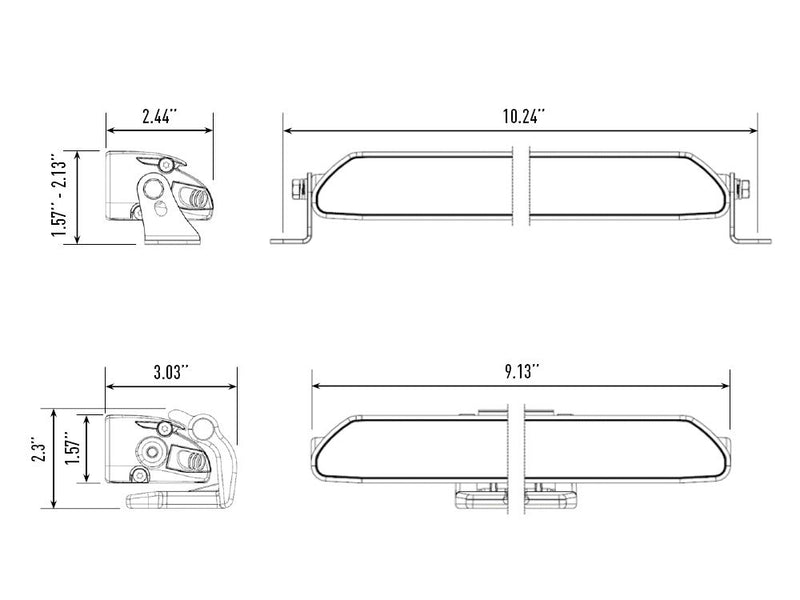

DIMENSIONS |
|
Width |
9.13" |
Depth |
2.44" |
Height |
1.57" |

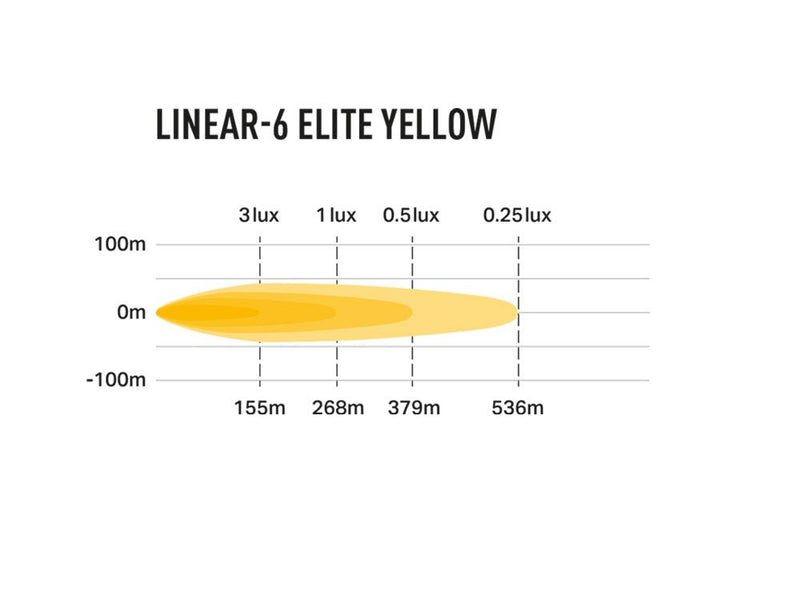

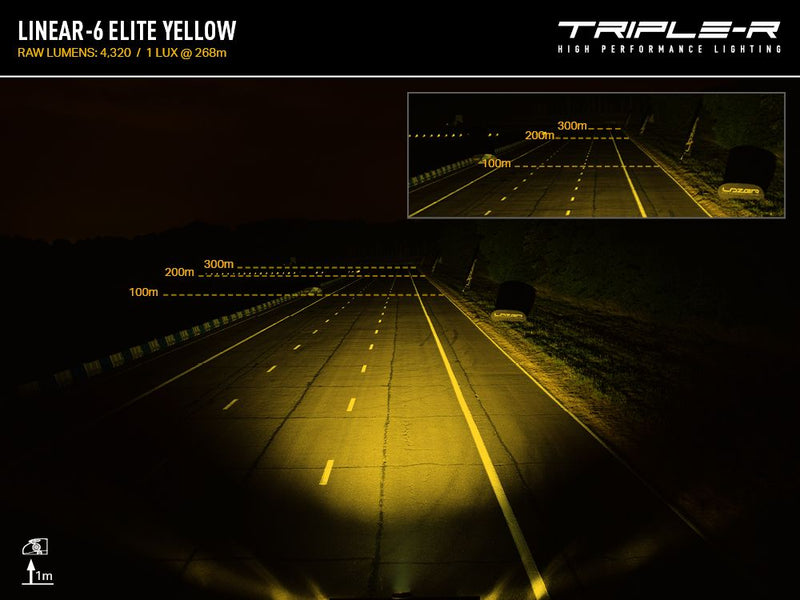

PHOTOMETRIC DATA |
|

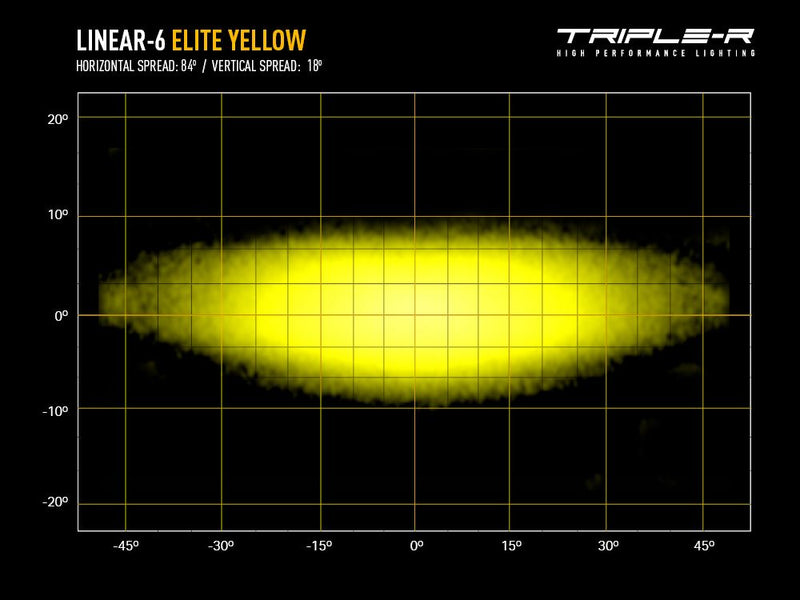

Horizontal Beam Angle |
80˚ |
0.25 lx Line |
536m |
0.5 lx Line |
379m |
1 lx Line |
268m |
3 lx Line |
155m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
What's Included
- 1x Linear-6 Elite (Yellow) LED Light
- 1x Anti-Theft Side Mount Kit (1127K)
- 1x Fitting Instructions
